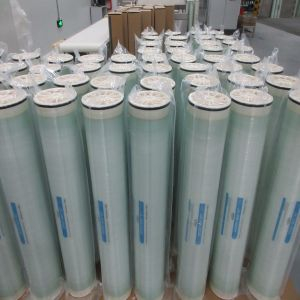

Nanofiltration And Toray Reverse Osmosis Elements 8040 Made by Japan

TORAY began producing spiral-wound reverse osmosis and nanofiltration membrane elements in 1968, first using cellulose acetate membrane material. Today, our product line includes a full range of state-of-the-art cross-linked polyamide composite membranes manufactured under ISO-9001 certification for consistency in product and service quality.
  • JX

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
Toray Reverse Osmosis and Nanofiltration Elements
Toray Reverse Osmosis and Nanofiltration Elements

TORAY first began producing Reverse Osmosis and Nanofiltration spiral wound membrane elements in 1967, starting With cellulose acetate membrane elements. Today, our product line includes a full range of state-of-the-art cross-linked polyamide composite membranes manufactured under ISO-9001 certification.

Materials

・Cross-linked fully aromatic polyamide composite membrane

・Cross-linked polypiperazine polyamide composite membrane

・Cellulose acetate membrane


Products

・High rejection TM700 series, for high salinity brackish water applications

・Ultra low pressure TMH and TMG series for low salinity brackish water applications

・High rejection TM800 series, for sea water applications

・High pressure & rejection TM800H series, for high salinity sea water applications

・Commercial & household 2" to 4" tap water elements




Connpaector Type Comrison

Toray offers most of its standard 8" elements with a flush cut design. The anti-telescoping device (ATD) on 8" TM elements provides improved face-to-face contact for hydraulic loading, providing more uniform distribution of the loads.

These flush-cut elements are fully compatible with many other elements in the industry. With its flush-cut elements, Toray has set its sights on  how internal sealing is done, thus ensuring the highest degree of integral sealing between elements within the pressure vessel.

Toray RO・NF Membrane Element

4inch

8inch

TM series

Outer Type

Inner Type

SU series

Outer Type

Outer Type

outer type inner type



Product Advantages

Toray RO Membrane Elements have been certified as follows:

For RO elements made by Toray Ehime Plant, Japan

· AMST (Association of Membrane Separation Technology of Japan)

For RO elements made by Toray Membrane USA, Inc. (TMUS)

CSA CLASS 6861 08 - Mechanical Devices - NSF /ANSI 61 Section 8 -Certified to NSF / ANSI 61


Special Features

・Hot water sanitizable elements

・Chlorine resistant NF elements

・Pre-rinsed ultra pure water elements

・Custom-made elements for various special applications


Quality

More than 30 years of production experience, thousands of high-performing RO plants throughout the world are the foundation of the excellent reputation that TORAY membrane products have.



Applications

BRACKISH WATER

Toray RO membranes (available in 4-inch, 8-inch, and 16-inch diameters) are used for municipal, industrial, and commercial applications.

For individual membrane selection by application or membrane type, please use the membrane product search feature.

TM Series

Series

Model

Diameter

Product Flow
Rate

Rejection

Net
Thickness

Data
Sheet

(inch)

(m3/d)

(gpd)

(%)

(mil)

TM700D
(High Rejection)

TM710D

4

9.8

2,600

99.8

31

Get PDF

TM720D-400

8

41.6

11,000

99.8

34

TM720D-440

8

45.8

12,100

99.8

28

TMG(D)
(Low Pressure)

TMG10D

4

10.0

2,650

99.7

34

Get PDF

TMG20D-400

8

45.8

12,100

99.7

34

TMG20D-440

8

50.3

13,300

99.7

28

TMHA
(Ultra Low Pressure)

TMH10A

4

9.1

2,400

99.3

31

Get PDF

TMH20A-400C

8

41.6

11,000

99.3

34

TMH20A-440C

8

45.7

12,100

99.3

28

TBW Series

Series

Model

Diameter

Product Flow
Rate

Rejection

Net
Thickness

Data
Sheet

(inch)

(m3/d)

(gpd)

(%)

(mil)

TBW-HR
(Ultra Low Pressure,
High Neutral Molecule Rejection)

TBW-440HR

8

31

8,200

99.8

28

Get PDF

SU Series (For replacement only)

Series

Model

Diameter

Product Flow
Rate

Rejection

Net
Thickness

Data
Sheet

(inch)

(m3/d)

(gpd)

(%)

(mil)

TS
(Heat Sanitized)

SU-710T

4

6.5

1,700

99.4

31

Get PDF

SU-720TS

8

26.0

6,900

99.4

31

SUL-G10TS

4

5.0

1,300

99.5

31

Get PDF

SUL-G20TS

8

30.0

7,900

99.5

28

SUL-G20FTS

8

36.0

9,500

99.5

28


SEA WATER

Toray manufactures seawater RO membranes in 4, 8, and 16-inch diameters that can treat seawater or high salinity water sources with > 10,000 ppm. Our products are widely used for mega desalination plants, watermakers for private boats and commercial ships, and treating mining tailing water for reuse or discharge.

TM Series

Series

Model

Diameter

Product Flow
Rate

Rejection

Net
Thickness

Data
Sheet

(inch)

(m3/d)

(gpd)

(%)

(mil)

TM800M
(Standard)

TM820M-400

8

26.5

7,000

99.8

34

Get PDF

TM820M-440

8

29.2

7,700

99.8

28

TM800V
(Low Energy)

TM810V

4

7.2

1,900

99.8

28

Get PDF

TM820V-400

8

34.1

9,000

99.8

34

TM820V-440

8

37.5

9,900

99.8

28

TSW-LE
(Super Low Energy)
(*600 psi)

TSW-400LE

8

23.0*

6,100*

99.60*

34

Get PDF

TSW-440LE

8

25.3*

6,700*

99.60*

28

TM800K
(Highest Rejection)

TM820K-400

8

21.9

5,800

99.86

34

Get PDF

TM820K-440

8

24.2

6,400

99.86

28


FOULING POTENTIAL WATER

Toray's low fouling RO membranes effectively treat feed water types with high fouling tendency. Combined with our proprietary durable "D-family" membrane recipe for enhanced chemical tolerance, Toray's membrane elements offer one of the most reliable performance under challenging conditions. Ideal for wastewater treatment and water reuse applications.

TM Series

Series

Model

Diameter

Product Flow
Rate

Rejection

Net
Thickness

Data
Sheet

(inch)

(m3/d)

(gpd)

(%)

(mil)

TLF
(Ultra Low pressure, Low Fouling)

TLF-400DG

8

43.5

11,500

99.5

34

Get PDF

TMLD
(Low Fouling, High Tolerance)

TML10D

4

7.2

1,900

99.8

34

Get PDF

TML20D-400

8

39.7

10,500

99.8

34
