| Berghof MO 84G 66.03 i8 Equivalent Tubular UF Membrane |
Direct Replacement Solution for Existing Berghof HyperFlux i8 Systems

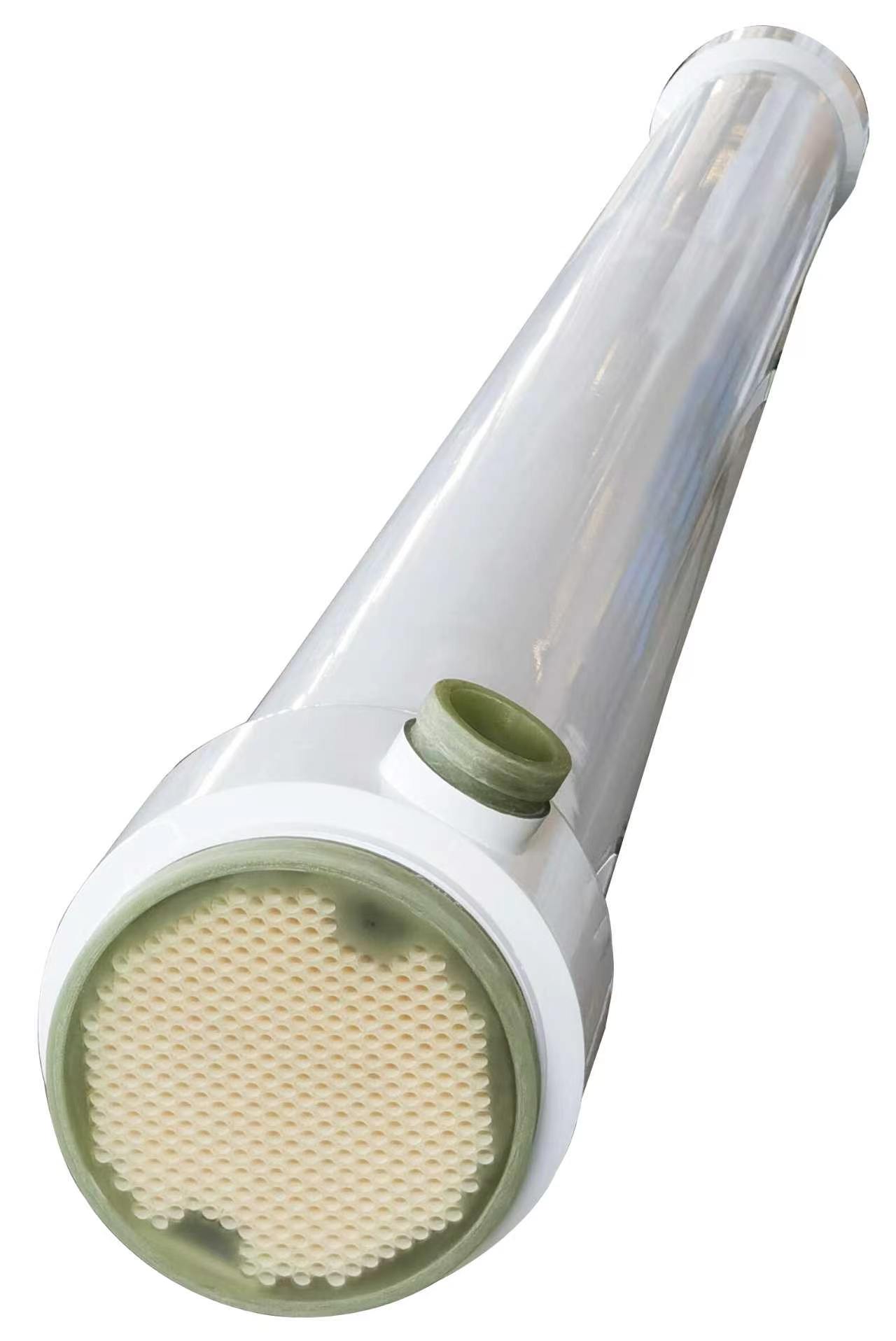

PVDF Tubular UF Membrane Module
8 mm ID | 30 nm | 36.7 m² | 8" × 4 m
✓ Designed for existing Berghof i8 installations
✓ PVDF tubular ultrafiltration membrane
✓ Easy replacement with compatible connections
| Parameter | Berghof MO 84G 66.03 i8 | JX-G-848-F/P |
|---|---|---|
| Filtration Type | Ultrafiltration | Ultrafiltration |
| Membrane Material | PVDF | PVDF |
| Membrane Tube ID | 8 mm | 8 mm |
| Pore Size | 30 nm | 30 nm |
| Effective Membrane Area | 36.7 m² | 36.7 m² / Actual |
| Module Diameter | 8 inch | Actual |
| Module Length | 4 m | Actual |
| Flow Direction | Inside-Out | Inside-Out |
| Feed / Concentrate Connection | Victaulic 8" | Actual |
| Permeate Connection | Victaulic 2.5" | Actual |
| Replacement | — | Berghof Compatible |

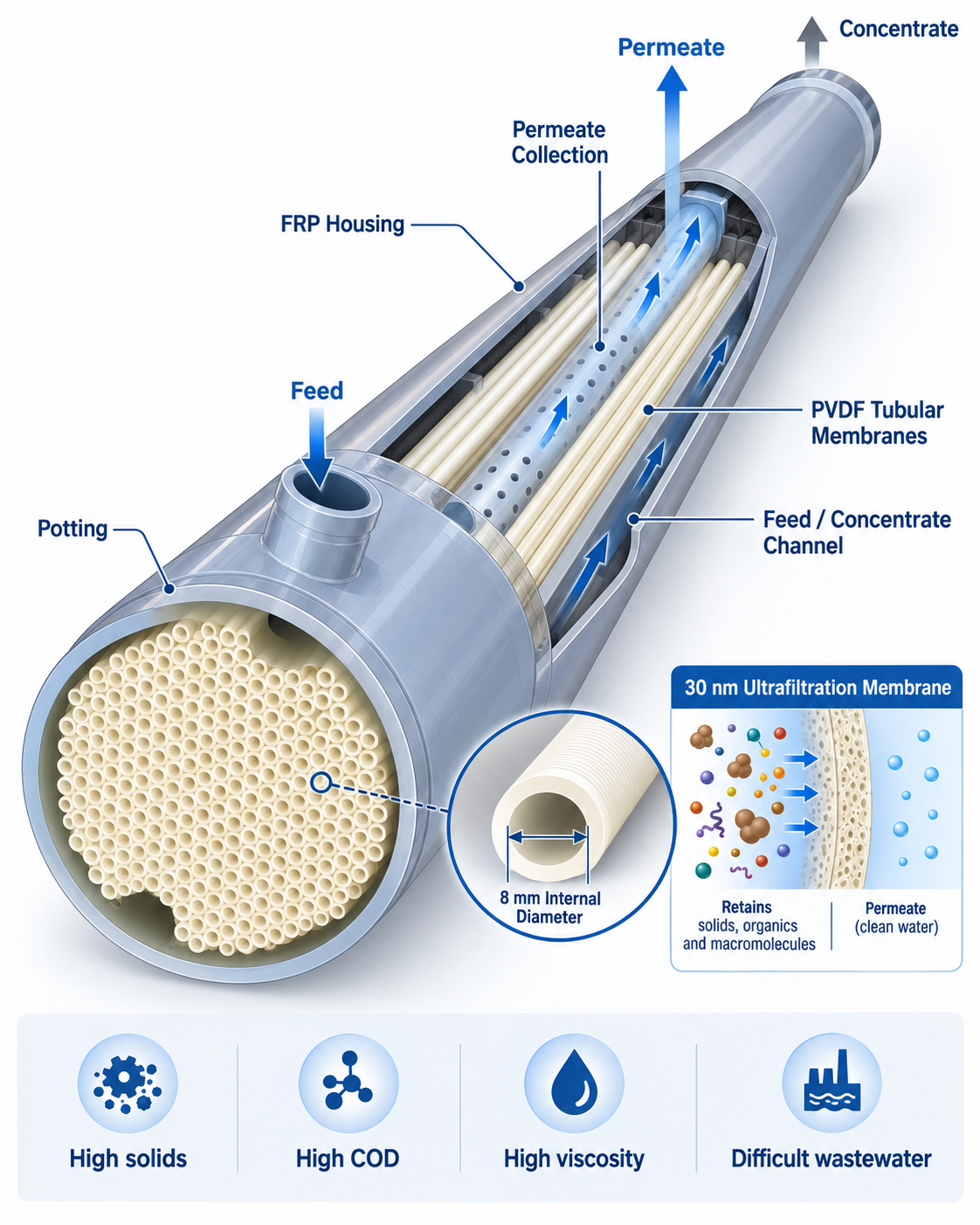

Tubular UF Membrane Structure
