Equivalent of Microza UHS640A UHS620A

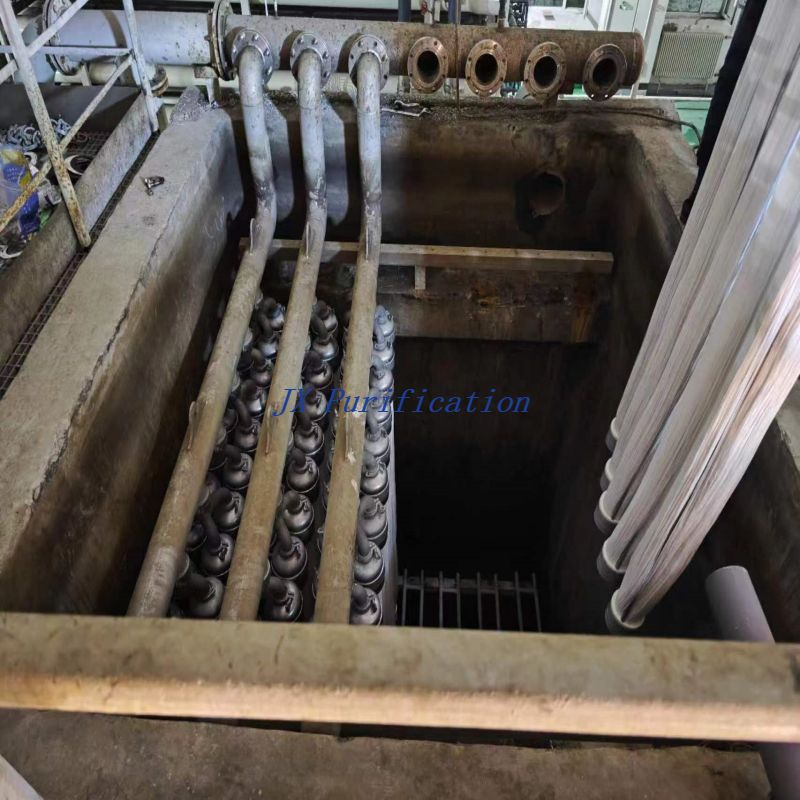

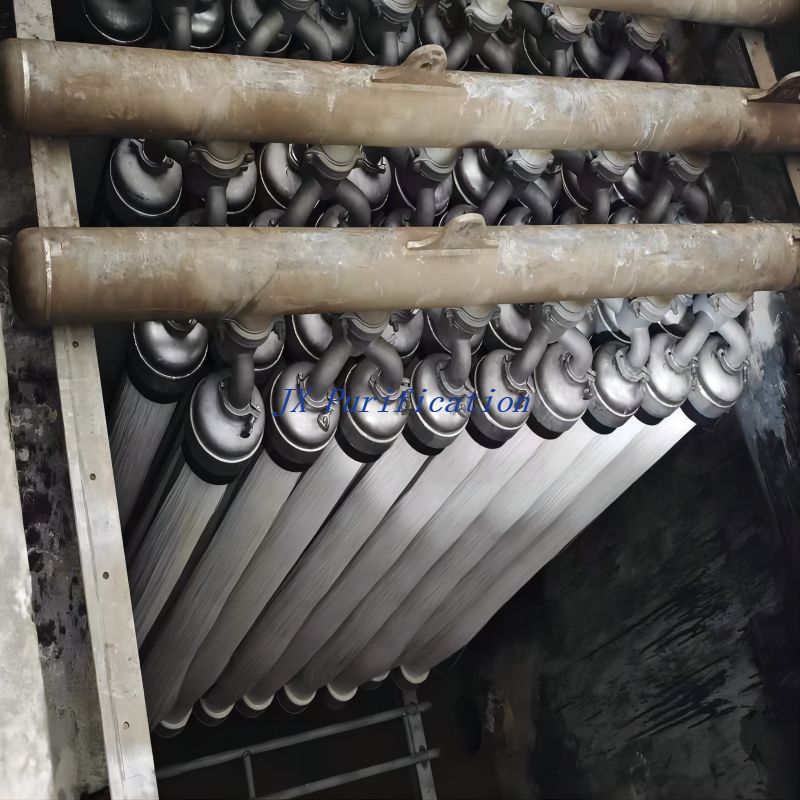

JX membrane module adopts PVDF hollow fiber ultrafiltration membrane prepared by advanced thermotropic phase separation method, with homogeneous sponge structure, featuring high strength, large flux, chemical resistance and recoverability. Submerged membrane module skid set aeration pipeline, water production pipeline in one, the whole submerged in the filtration of water, membrane operation environment visualization is conducive to the stable operation of the membrane.

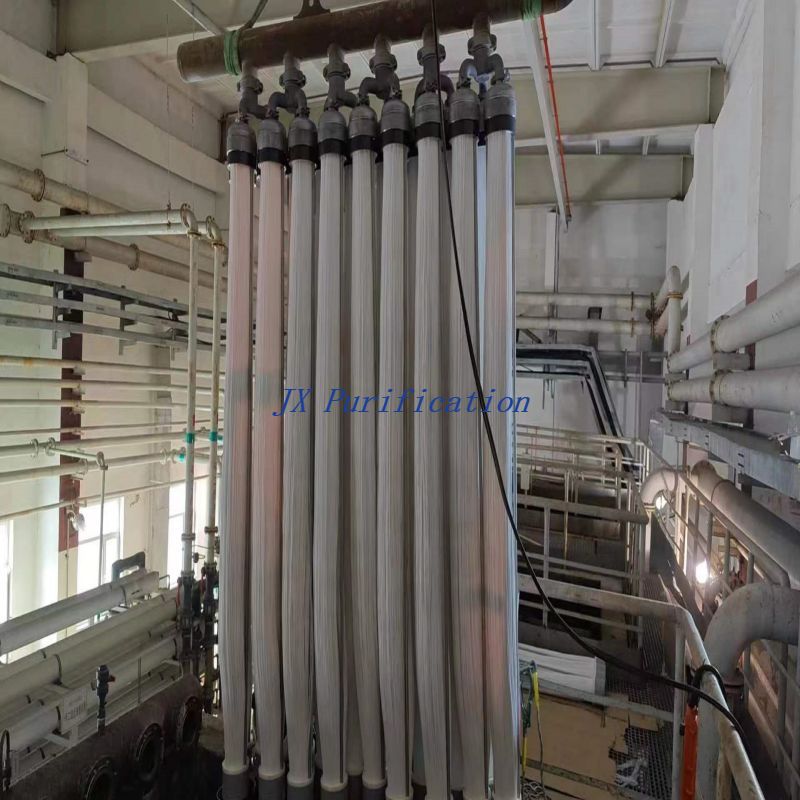

Submerged system is highly integrated, easy installation of components, reasonable design of skid frame, uniform aeration, large water production and small footprint. Hydrophilic treatment, so that its low-pressure pumping low energy consumption, the outer frame membrane shell design, effective protection of membrane filament resistant to flushing; outer frame membrane shell design, effective protection of membrane filament resistant to impact; open membrane shell design, so that its dirt-holding capacity is strong and easy to clean, to protect the membrane system for long-term stable operation.
Product Features and Advantages
Long service life
High tensile strength
Double-layer encapsulation technology
Cost savings
Low pre-treatment requirements
High flux of produced water, high water recovery rate
Hydrophilic treatment, low pressure pumping, low energy consumption
Good quality of produced water
Homogeneous sponge structure
Not easy to break fiber
Highly integrated
Minimal footprint
High fill rate membrane system design
Long cleaning cycle
Cleaning pH value 2-11
Resistant to 5000mg/sodium hypochlorite cleaning
Easy installation
Integration of aeration and water collection, simplify piping
Integral suspension, easy to disassemble
Specifications
MBR module | Type | JX-SM167R(UHS640A) | JX-SM167(UHS620A) |
Material | PVDF | PVDF | |
Membrane area(m2) | 35 | 50 | |
Pore size (um) | 0.1 | ||
Fiber I/O diameter (mm) | 0.7/1.3 | ||
Way | TIPS | ||
Module size | Dimension (mm) | 167*1553L | 167*2164L |
Connection size | M65*3 Threaded connection | ||
Material | Housing Material | U-PVC//ABS | |
Operation conditions
Conditions | Temperature range | 1-45℃ |
Continuous pH range | 2-11 | |
Operation flux (LMH) | 20-60 | |
Backwash flux (LMH) | 30-120 | |
Air flow (Nm3/h,piece ) | 6-12 | |
Chemical cleaning pH range | 2-14 | |
Operating TMPA | -0.03 | |
Max. TMPA | -0.08 | |
Max. Backwash pressure (Mpa) | 0.25 | |
Product capacity | Permeate Turbidity (NTU) | <=0.2 |
Production and water pollution index (SDI15) | <=3.0 |
