UTP6443
JX purification

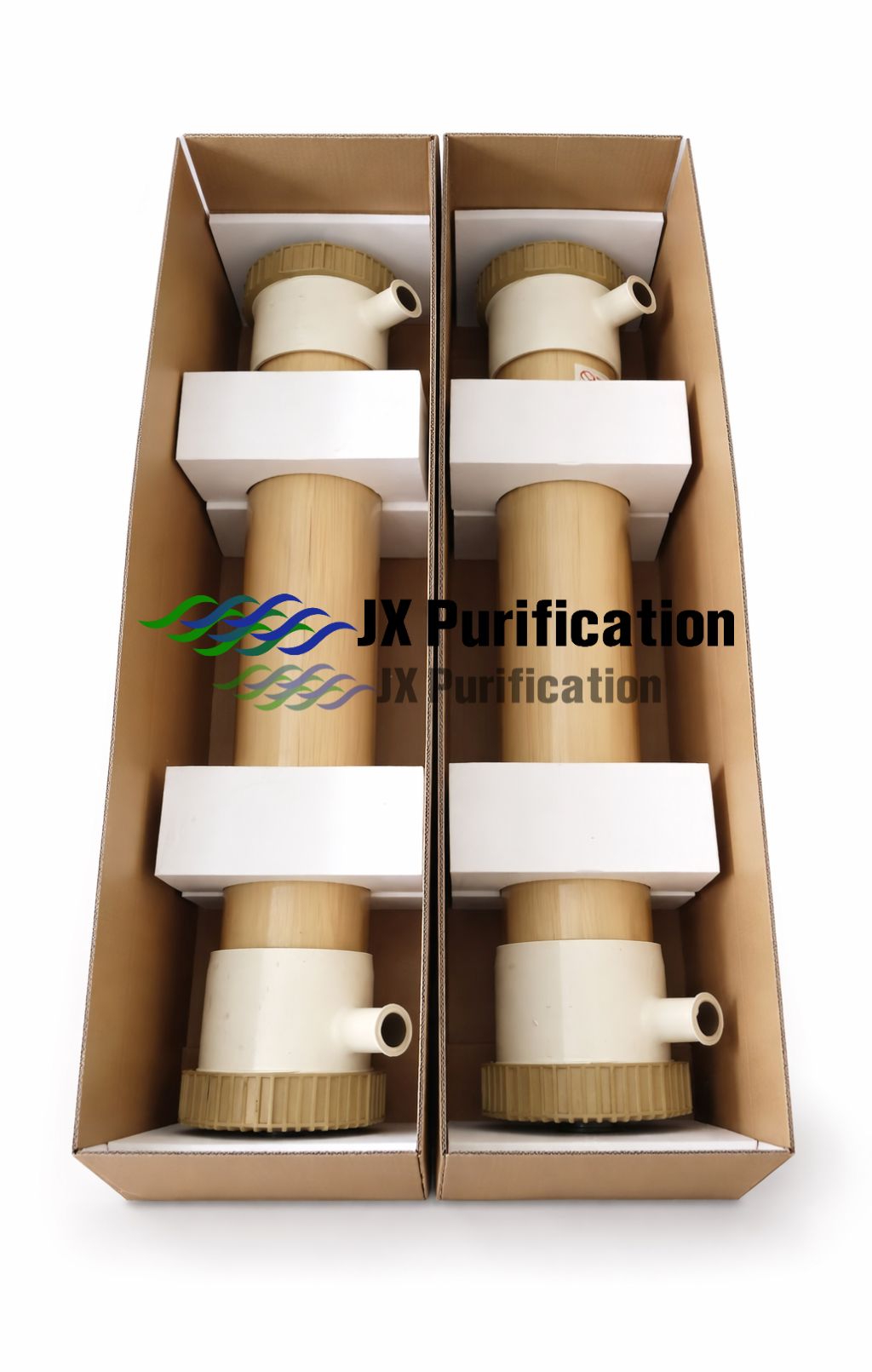

Replacement for MICROZA Pall UTP6443 Hollow Fiber Membrane Module
Cost-effective alternative with stable performance, fast delivery, and global project experience.
Features:
100% compatible with existing systems
Lower cost than original brands
Proven in municipal & industrial projects
Why Choose Our Replacement for MICROZA?
✔ Same installation size – no system modification
✔ Comparable flux & rejection rate
✔ Lower replacement cost (save 30–50%)
✔ Short lead time (2–3 weeks)
✔ OEM customization available
Product Introduction

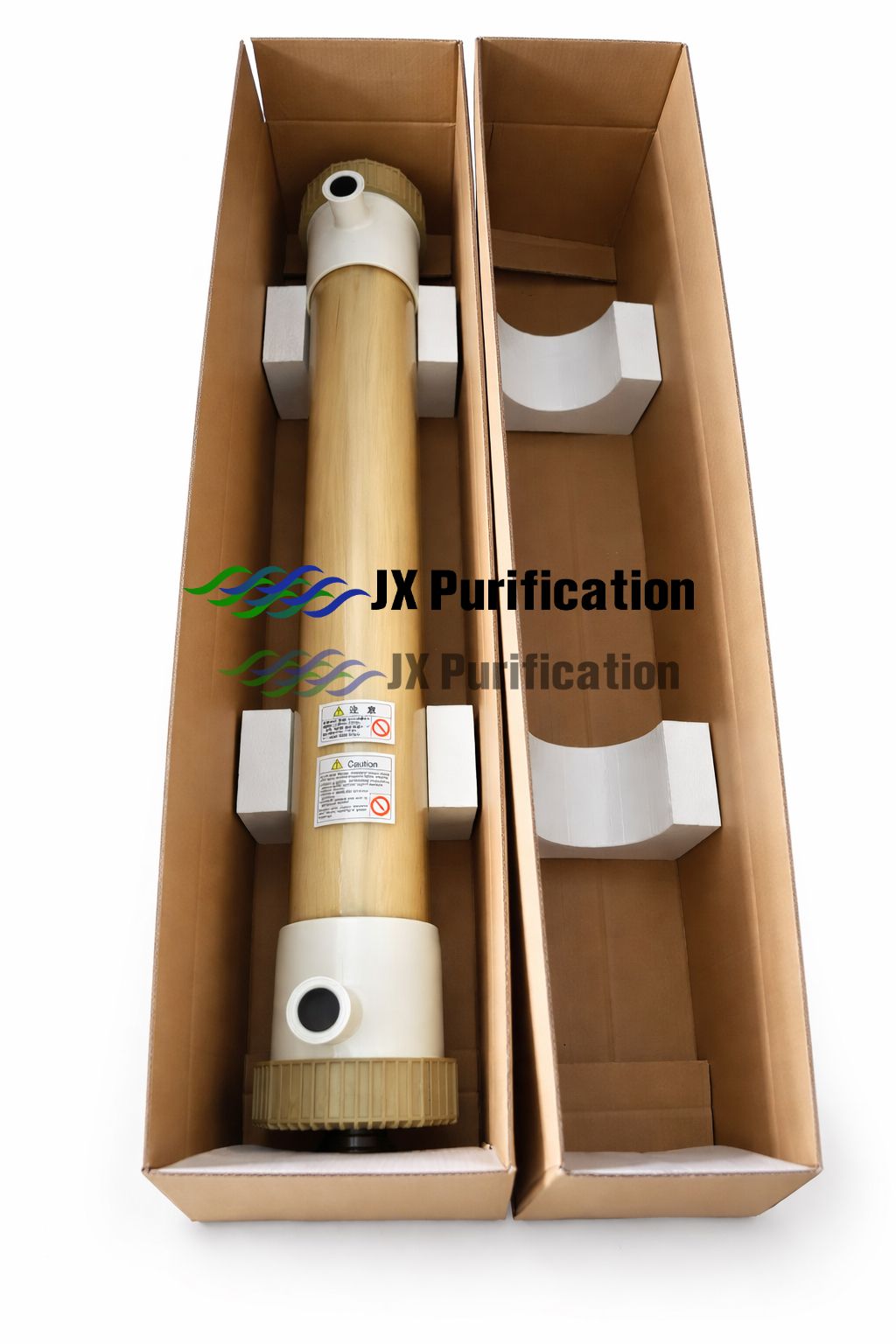

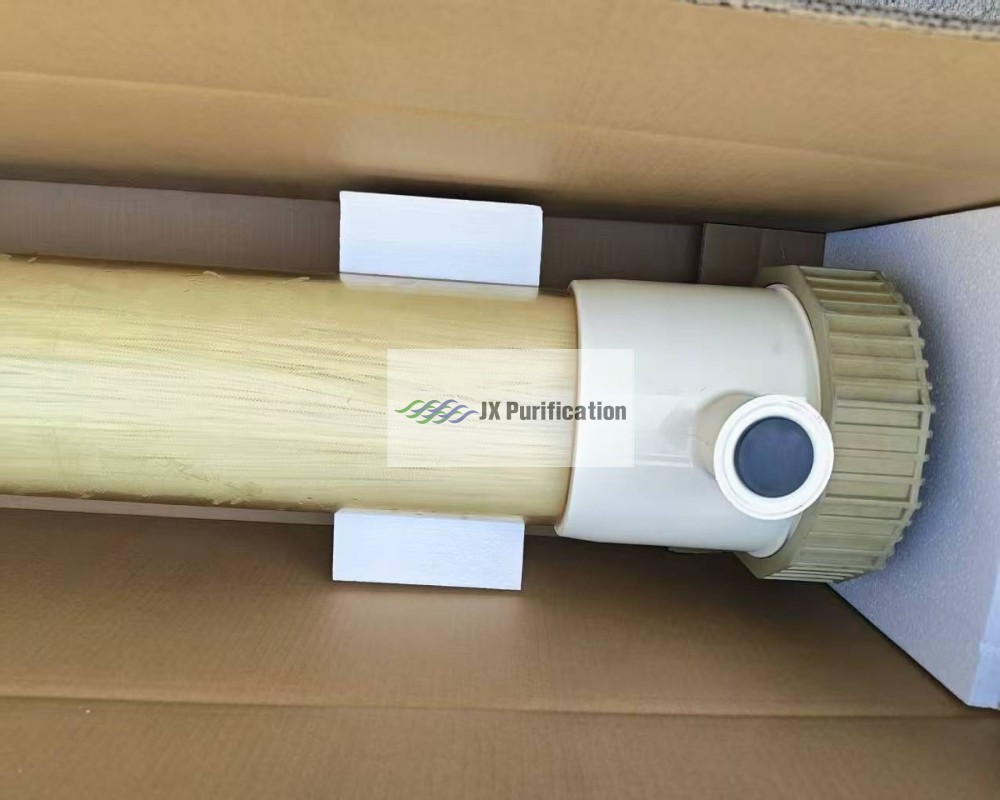

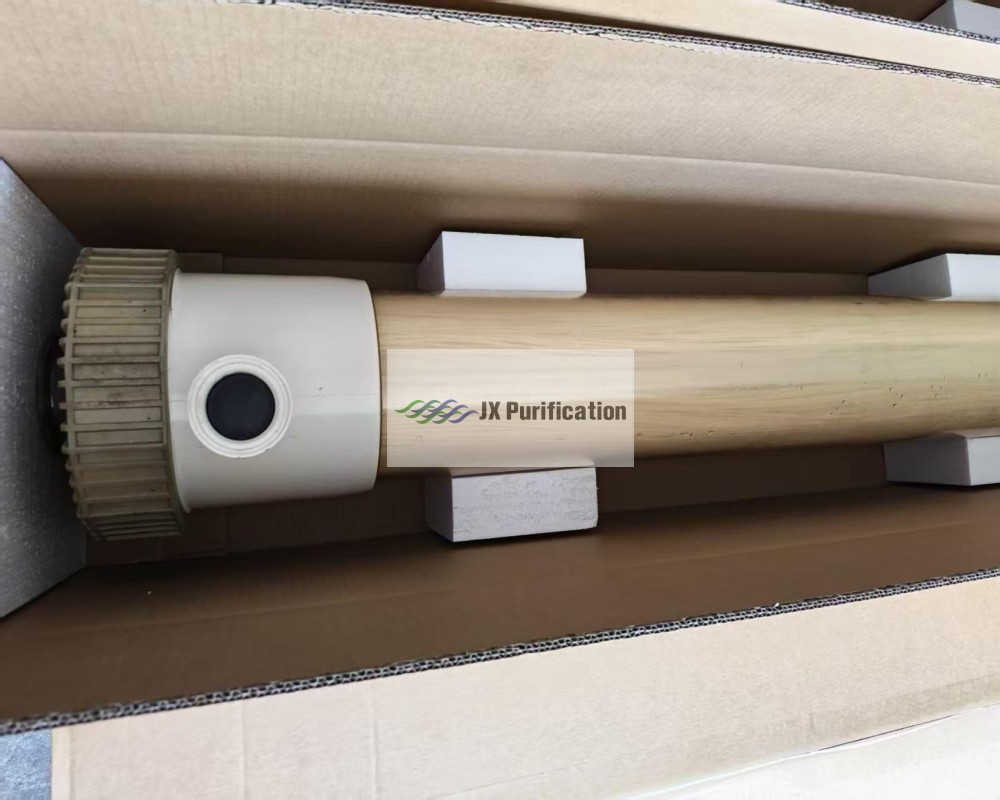

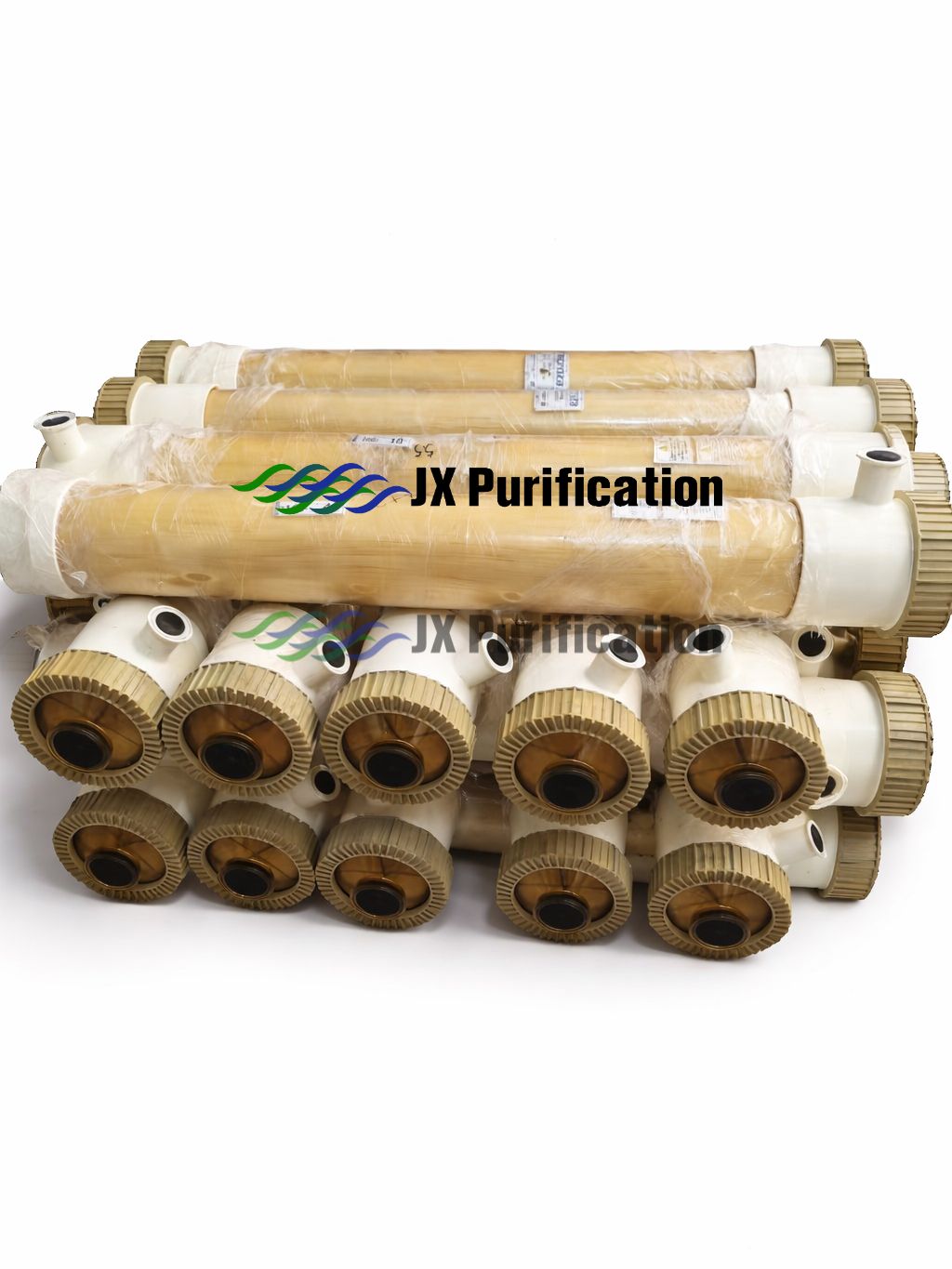

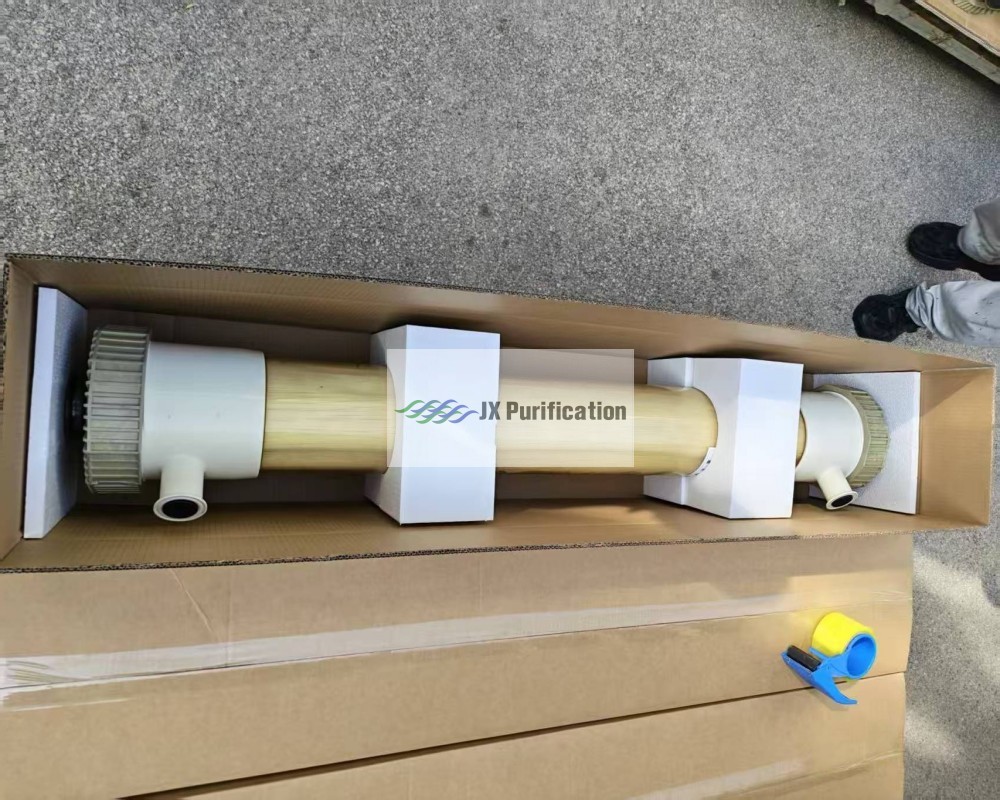

The UTP-6443 is a high-performance hollow fiber membrane module designed for water treatment and other separation processes. Adopting polyvinylidene fluoride (PVDF) hollow fiber membranes and a transparent polysulfone (PSF) housing, it features stable performance, excellent chemical resistance, and easy observation of internal conditions during operation.
Technical Parameters
Category | Parameter Item | Specification |
Basic Information | Model Name | JXUTP-6443 |
Materials | Hollow Fiber Membrane | Polyvinylidene fluoride (PVDF) |
Module Housing | Polysulfone (PSF), Transparent | |
Key Specifications | Membrane Inner Diameter | 1.4 mm |
Effective Membrane Area | 21.5 m² | |
Performance Indicators | Nominal Pore Size | 0.2 μm |
Initial Permeate Flow Rate | Not specified | |
Operating Conditions | Maximum Trans membrane Pressure (TMP) | 300 kPa (applicable at 0-70℃) |
Maximum Operating Temperature | 70℃ (Normal Use / Hot Water Sterilization) | |
Operating pH Range | 1-10 | |
Dimensions | Module Dimensions | 1,512 mm (Length) × 165 mm (Diameter) |
Size Specification | 6 inches |
 |  |
|---|

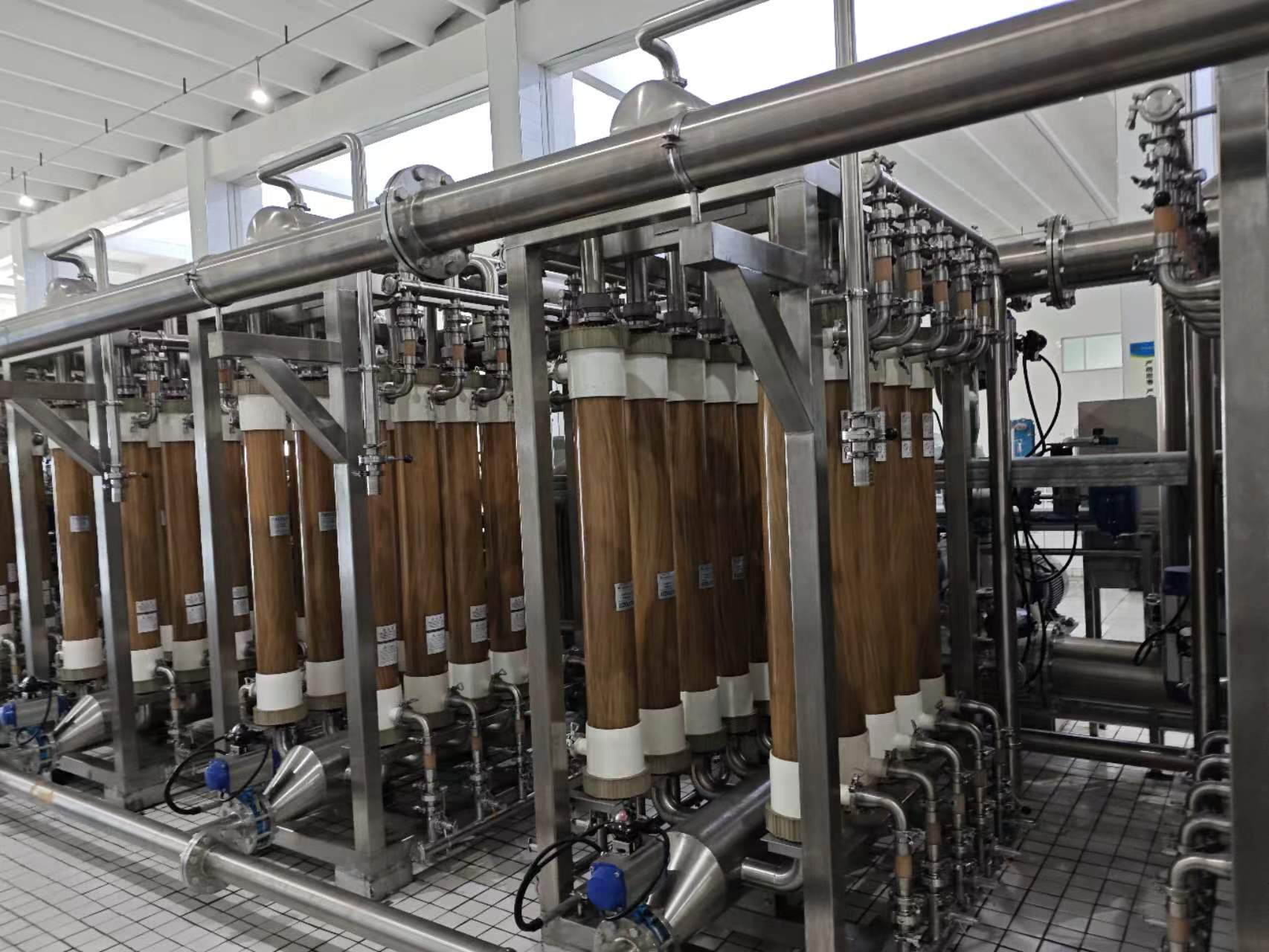

Industrial Process MF Solutions
Application Fields by Industry
Food: Contributes to improved productivity in separation and filtration processes in the food industry through both software and hardware approaches
Pharmaceuticals: Achieves increased yield and productivity of target substances (antibodies, proteins, vaccines, enzymes, etc.)
Chemical Industry: Effective for automation, labor saving, and cleanliness in separation, concentration, and purification processes in chemical manufacturing
Application Fields by Use
Replacement for diatomaceous earth filters
Replacement for centrifuges
Sterilization and purification of broth
Concentration and purification of microbial cells (cell collection and washing)
Sterilization and clarification of food ingredients
Concentration and purification of colloidal substance
Recovery of valuable substances from other aqueous solutions
 |  |  |
|---|
