MF UTP-6443 Alternative for Fermentation Broth Clarification

Request Datasheet                                                               Discuss Your Application

Fermentation broth clarification is one of the most challenging steps in many industrial biotechnology, enzyme, food ingredient and biochemical production processes.

After fermentation, the process stream may contain microorganisms, suspended solids, cell debris, proteins, metabolites and other components that must be separated before downstream purification.

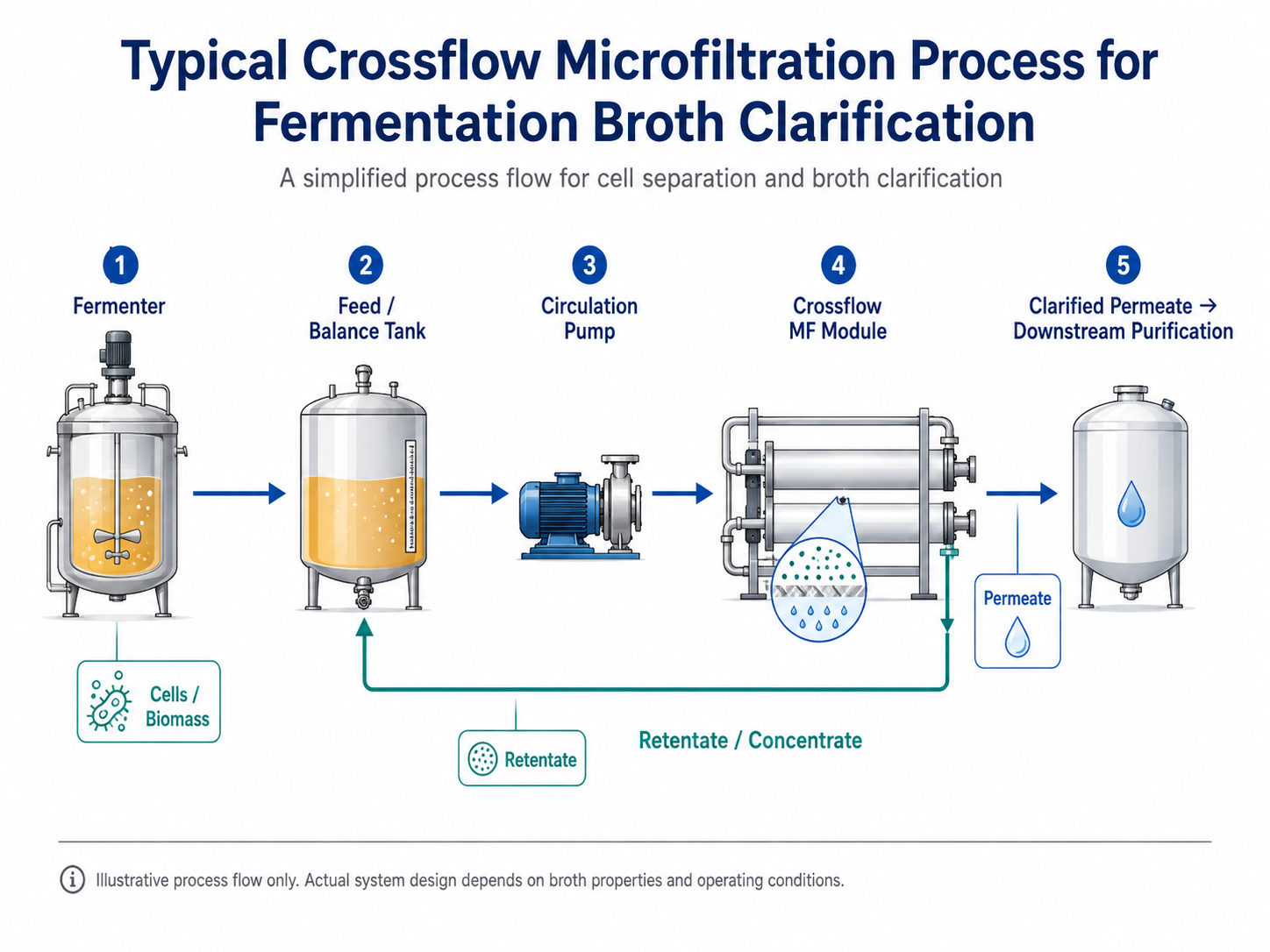

Crossflow microfiltration is widely used for this purpose because it enables continuous separation inside a closed system while reducing the need for conventional filtration aids.

For equipment manufacturers and membrane system integrators already designing systems around the Microza UTP-6443, selecting an alternative membrane is not simply a matter of finding another module with a nominal pore size of 0.2 μm.

A replacement membrane must be evaluated from three perspectives:

Mechanical compatibility

Process performance

Cleaning and operating compatibility

This guide explains the major factors fermentation and bioprocess equipment manufacturers should evaluate before qualifying an alternative membrane.

Why Is UTP-6443 Used in Industrial Process Filtration?

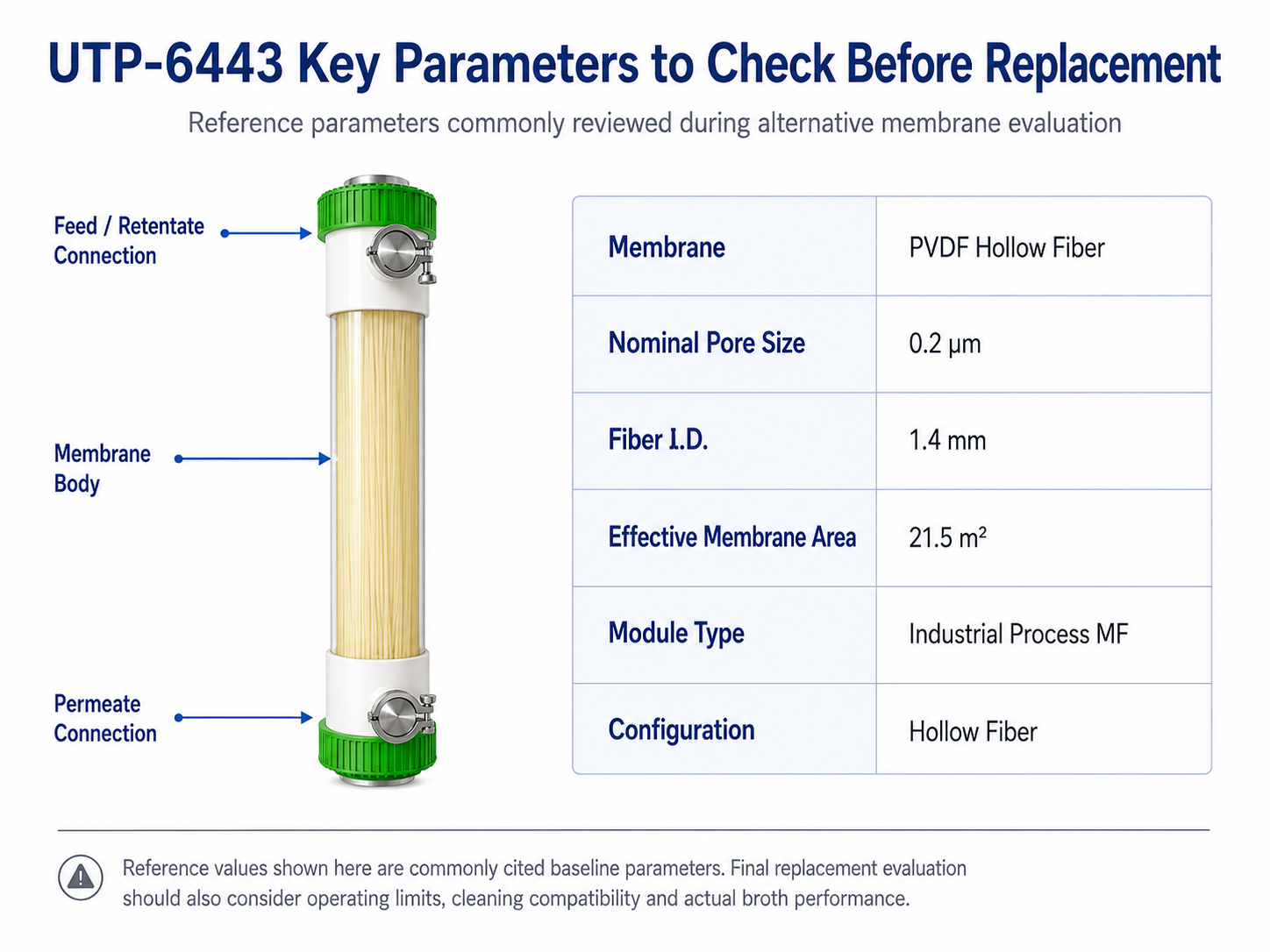

UTP-6443 belongs to the Microza U-Series industrial microfiltration membrane family.

According to publicly available manufacturer specifications, the module uses a PVDF hollow fiber membrane, with a nominal pore size of 0.2 μm, a hollow fiber internal diameter of 1.4 mm, and an effective membrane area of approximately 21.5 m².

These characteristics make this type of hollow fiber microfiltration module relevant to processes involving the separation of microorganisms and suspended solids from liquid streams.

Typical process applications for MF membranes can include:

· Fermentation broth clarification

· Microbial cell separation

· Cell harvesting and washing

· Enzyme production

· Food ingredient clarification

· Biochemical processing

· Biomass removal

· Downstream process clarification

However, membrane selection should always be based on the characteristics of the actual process fluid rather than pore size alone.

1. Check Mechanical Compatibility Before Considering Performance

For an equipment manufacturer, the first question is usually simple:

Can the alternative module be installed into the existing filtration skid without redesigning the system?

This should be verified before conducting more detailed performance testing.

Important mechanical parameters include:



An alternative that requires extensive piping modification may no longer be economically attractive even if the membrane itself costs less.

For existing systems, equipment manufacturers should therefore request a dimension drawing before approving any replacement.

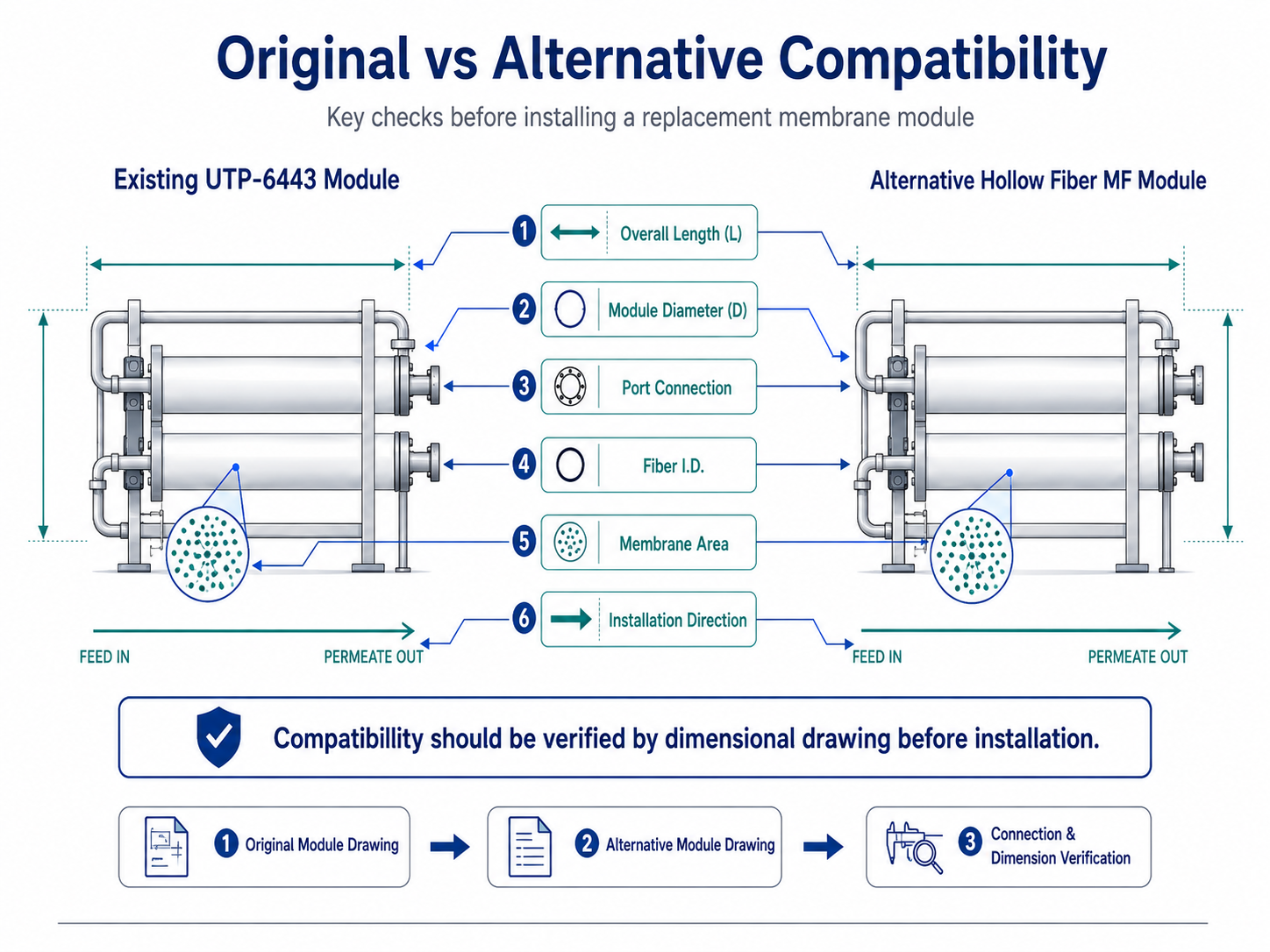

Recommended Engineering Check

Before quotation or pilot testing, compare:

Original Module Drawing

↓

Alternative Module Drawing

↓

Connection & Dimension Verification

↓

Existing Skid Installation Check

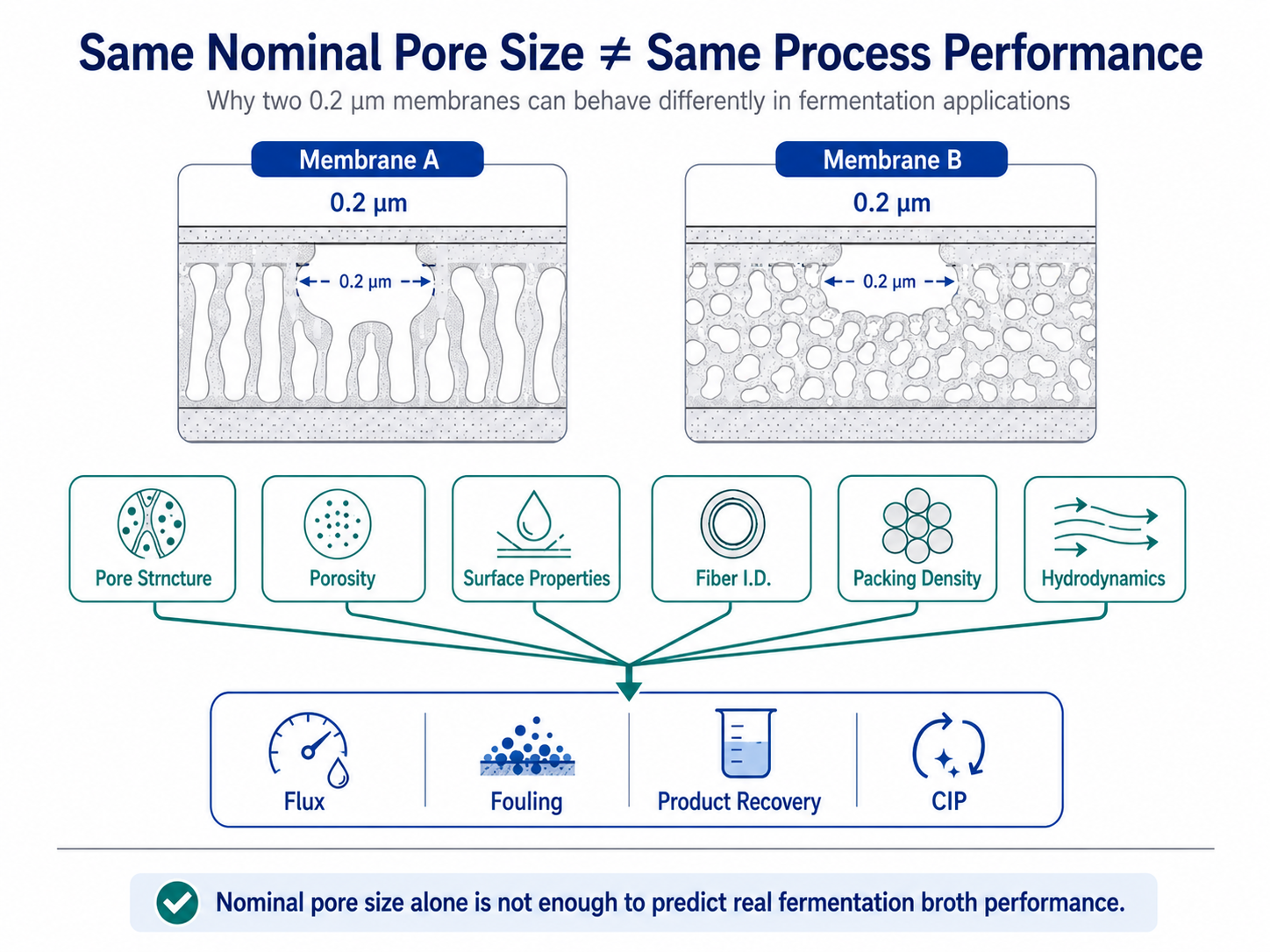

2. Do Not Compare Membranes by Pore Size Alone

A common mistake is to assume:

0.2 μm membrane = another 0.2 μm membrane

In fermentation applications, this is not sufficient.

Two membranes with the same nominal pore size can behave differently because of differences in:

· Membrane morphology

· Porosity

· Surface characteristics

· Fiber geometry

· Fiber internal diameter

· Membrane thickness

· Hydrophilicity

· Module packing density

· Flow distribution

These differences can influence:

Permeate flux

Product transmission

Cell retention

Fouling behavior

Pressure drop

and

Cleaning recovery

Therefore, membrane equivalence should be demonstrated through actual process testing.

3. Evaluate Membrane Area and System Capacity

UTP-6443 has a relatively large membrane area within a single hollow fiber module.

When replacing an existing module, equipment manufacturers should confirm whether the alternative provides a comparable effective filtration area.

This matters because total membrane area affects system sizing.

For example:

Required System Capacity

↓

Target Sustainable Flux

↓

Required Membrane Area

↓

Number of Modules

A module with significantly less membrane area may require additional modules to achieve the same production capacity.

Conversely, membrane area alone does not determine system output.

For fermentation broth, the more useful parameter is:

Sustainable Process Flux

rather than:

Pure Water Flux

Pure-water permeability data is useful for quality control, but it should not be used directly to predict fermentation broth production capacity.

The actual sustainable flux depends heavily on the broth characteristics.

4. Understand the Fermentation Broth Before Selecting the Membrane

Fermentation broth can be much more difficult to filter than ordinary process water.

Equipment manufacturers should collect information about the feed before sizing the membrane system.

Recommended Feed Information

A membrane supplier that only asks for the required flow rate is unlikely to have enough information to recommend reliable operating conditions.

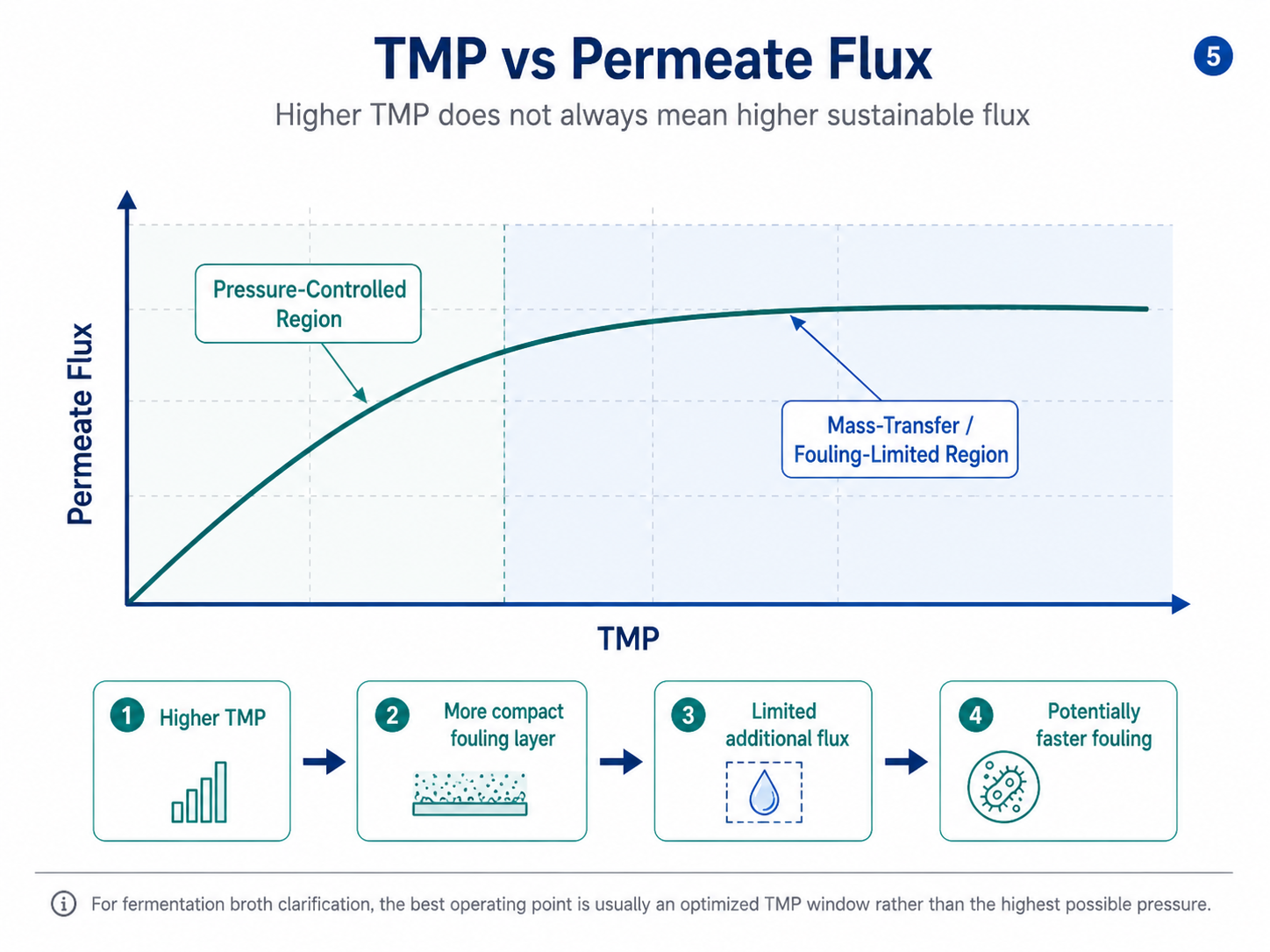

5. TMP Is Important — But Higher TMP Does Not Always Mean Higher Production

Transmembrane pressure, or TMP, is one of the key operating parameters in crossflow membrane filtration.

It provides the driving force for permeation through the membrane.

However, fermentation broth filtration is often strongly affected by concentration polarization and cake-layer formation.

Increasing TMP may initially increase permeate flow.

After a certain point, however, additional pressure may compress the accumulated solids layer on the membrane surface.

The result may be:

Higher TMP

→

More compact fouling layer

→

Limited additional flux

→

Potentially faster fouling

For this reason, equipment manufacturers should identify an appropriate operating window rather than simply operating at the highest allowable pressure.

Pilot testing should therefore record:

· Feed pressure

· Retentate pressure

· Permeate pressure

· TMP

· Permeate flow

· Feed temperature

· Filtration time

· Concentration factor

6. Crossflow Velocity Can Be Just as Important as TMP

In crossflow filtration, the feed stream flows parallel to the membrane surface.

This tangential flow helps reduce solids accumulation.

For fermentation broth, crossflow velocity can significantly influence:

· Cake-layer formation

· Concentration polarization

· Flux stability

· Pressure drop

· Pump energy consumption

Higher circulation velocity may improve membrane surface cleaning.

But it also creates disadvantages.

Higher velocity means:

larger recirculation pump

·

higher electricity consumption

·

potentially greater shear

Therefore, an equipment manufacturer should not evaluate a replacement membrane based only on maximum pressure.

The system should be evaluated as a combination of:

Membrane + Pump + Piping + Control Strategy + Cleaning Program

7. Product Recovery Is More Important Than Permeate Flow

This is particularly important for fermentation and bioprocess applications.

The objective is often not simply to produce clarified water.

The filtrate may contain a valuable product such as:

· Enzymes

· Organic acids

· Amino acids

· Fermentation metabolites

· Soluble proteins

· Food ingredients

· Biochemicals

Therefore, equipment manufacturers should evaluate:

Product Transmission

How much target product passes through the membrane?

Product Recovery

How much saleable product is recovered from the original fermentation batch?

A membrane that produces very high permeate flow but retains or adsorbs part of the target product may create a poor overall process.

A useful pilot trial should therefore compare both:

Membrane Performance

and

Process Yield

8. Fouling Behavior Must Be Tested with the Actual Broth

Fermentation broth may contain:

proteins

cells

cell debris

polysaccharides

colloidal material

residual nutrients

These materials can contribute to membrane fouling.

A useful replacement evaluation should monitor the flux profile during an entire filtration cycle.

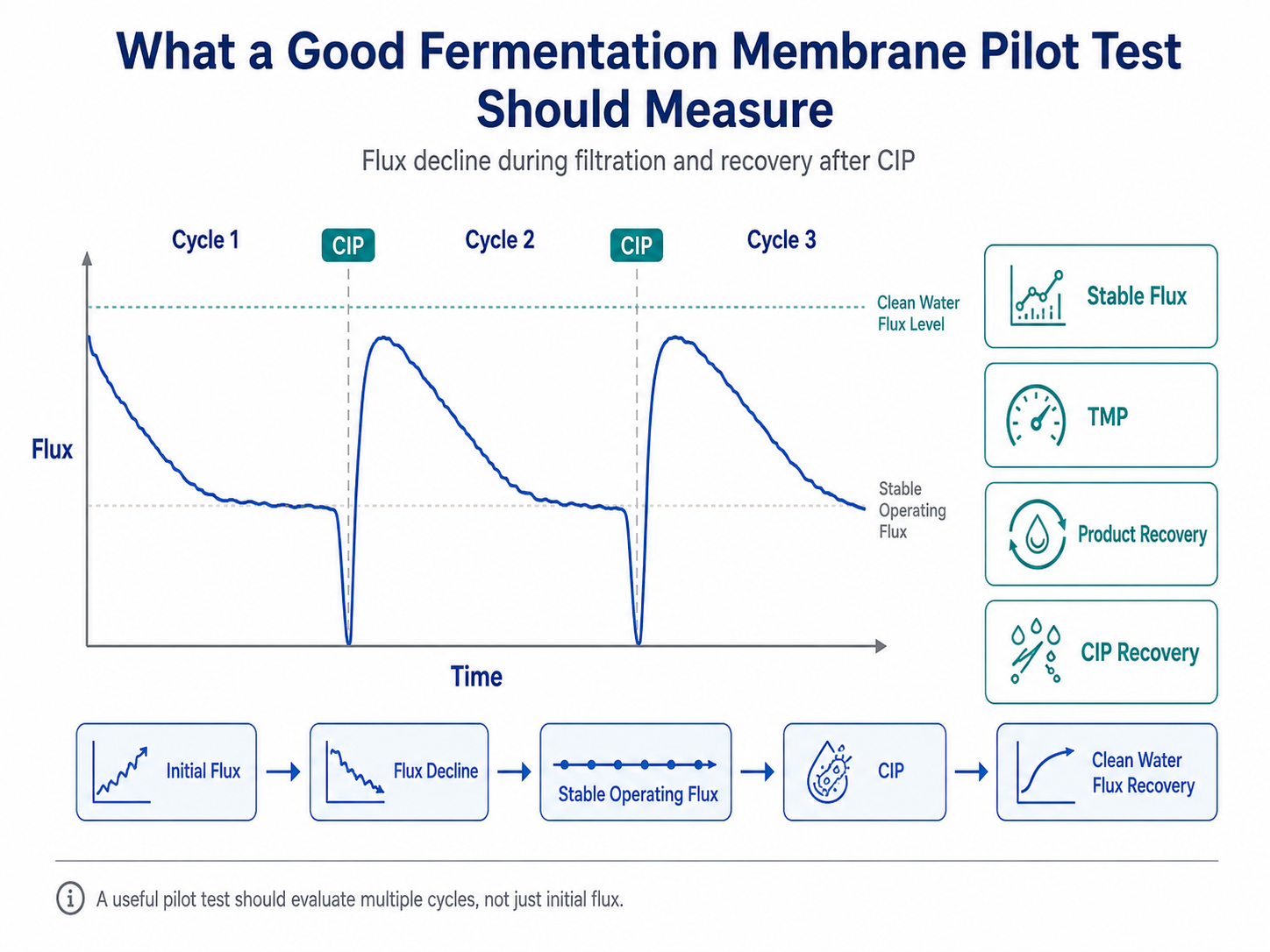

Typical Evaluation

Initial Flux

↓

Flux Decline

↓

Stable Operating Flux

↓

CIP

↓

Clean Water Flux Recovery

The most valuable membrane is not necessarily the membrane with the highest initial flux.

A membrane with slightly lower initial flux but better long-term stability and easier cleaning may provide lower operating cost over its full service life.

9. CIP Compatibility Is Critical

Fermentation equipment is cleaned frequently.

Therefore, membrane chemical compatibility can be just as important as filtration performance.

Equipment manufacturers should ask the membrane supplier to provide clear information regarding compatibility with:

· Sodium hydroxide

· Acid cleaning chemicals

· Oxidizing agents, where applicable

· Sanitizing chemicals

· Cleaning temperature

· Cleaning pH

· Maximum chemical concentration

· Cleaning duration

Never assume that two PVDF membranes have exactly the same cleaning limits.

The membrane housing, potting material, seals and other module components must also withstand the cleaning procedure.

Questions to Ask the Alternative Membrane Supplier

What NaOH concentration is allowed?

What acid concentration is allowed?

What is the maximum cleaning temperature?

How long can the membrane remain in cleaning solution?

Can the module tolerate repeated cleaning cycles?

What clean-water permeability recovery should be expected after CIP?



10. Check Operating Temperature and Pressure Limits Carefully

Mechanical dimensions may be identical while the allowable operating envelope is different.

Before approving a replacement, compare:

This comparison should be completed before the alternative membrane is described as a direct replacement.

For equipment manufacturers, the correct question is not:

“Does it look the same?”

It is: “Can it operate safely under our validated process conditions?”

11. Consider Pressure Drop Through the Hollow Fibers

Fiber internal diameter is particularly relevant when processing high-solids or viscous fermentation broth.

Smaller flow channels may increase pressure drop and increase the risk of channel blockage.

Larger flow channels can improve handling of high-solids feeds, although membrane area and packing density may change.

Equipment manufacturers should therefore evaluate:

Feed viscosity

solids concentration

fiber internal diameter

module flow rate

pressure drop

as one system.

Pump selection should be based on the complete hydraulic characteristics of the filtration loop rather than membrane pressure alone.

12. Integrity Testing and Quality Consistency Matter

For industrial biotechnology and pharmaceutical-related applications, equipment manufacturers may require more documentation than customers in general industrial water treatment.

Depending on the application, customers may request:

· Module integrity testing

· Factory pressure testing

· Material declaration

· Batch traceability

· Certificate of Analysis

· Certificate of Conformance

· Membrane material information

· Quality inspection records

· Packaging traceability

· Food-contact documentation

· Regulatory documentation, where applicable

The required documentation depends on the actual process and regulatory environment.

An alternative membrane supplier should clearly distinguish between:

documents available as standard and application-specific validation that must be performed by the equipment manufacturer or end user.

13. Always Perform a Pilot Test Before Full-Scale Replacement

For fermentation broth applications, pilot testing is strongly recommended.

The actual broth can vary significantly between different fermentation processes.

A practical qualification procedure is:

Step 1 — Collect Process Information

Broth characteristics, batch size, target product and existing operating conditions.

Step 2 — Confirm Mechanical Compatibility

Dimensions, connections, housing material and installation method.

Step 3 — Laboratory Screening

Confirm separation feasibility and product passage.

Step 4 — Pilot Filtration

Measure sustainable flux, TMP, circulation conditions and pressure drop.

Step 5 — Analyze Product Recovery

Compare feed, permeate and concentrate.

Step 6 — Perform CIP

Determine whether permeability can be effectively restored.

Step 7 — Repeat Multiple Cycles

Evaluate performance stability rather than one short filtration test.

Step 8 — Scale Up

Determine membrane area, module quantity, circulation pump capacity and cleaning system size.

A successful membrane replacement program should be based on data rather than assumptions.

What Data Should an Equipment Manufacturer Request From a Replacement Membrane Supplier?

Before qualifying an alternative to UTP-6443, request at least the following information:

Module Information

· Dimension drawing

· Connection drawing

· Membrane material

· Housing material

· Fiber internal diameter

· Nominal pore size

· Effective membrane area

Operating Limits

· Maximum operating pressure

· Maximum TMP

· Maximum operating temperature

· Cleaning temperature

· Operating pH range

· Chemical compatibility

Performance Information

· Pure-water permeability

· Recommended crossflow conditions

· Recommended operating TMP

· Typical fermentation application data, if available

· Cleaning recovery information

Quality Documentation

· COA or inspection report

· Integrity test method

· Material declaration

· Batch traceability

· Relevant compliance documents

Engineering Support

· Pilot module availability

· Sample testing

· Scale-up assistance

· CIP recommendations

· Troubleshooting support

The membrane price should only be compared after these technical factors have been considered.

When Does an Alternative Membrane Make Sense?

An alternative UTP-6443-type membrane can be worth evaluating when an equipment manufacturer or end user is looking for:

· A second-source membrane supplier

· Reduced replacement membrane cost

· Shorter delivery time

· More flexible order quantities

· OEM membrane supply

· Private-label membrane options

· Long-term replacement availability

· Technical support for existing filtration systems

However, successful replacement requires more than dimensional compatibility.

For fermentation broth clarification, the alternative should be evaluated as part of the complete process.

Final Considerations

Replacing a membrane module inside an existing fermentation filtration system should be approached as an engineering qualification project rather than a simple purchasing substitution.

For equipment manufacturers, the most important questions are:

Does the module physically fit?

Can it handle the required operating conditions?

Can it maintain sustainable flux with the actual fermentation broth?

Does the target product pass through at the required recovery?

Can membrane performance be restored after CIP?

Can the supplier provide consistent modules and technical documentation?

If these questions are answered through proper testing, an alternative membrane can provide equipment manufacturers with additional supply-chain flexibility while maintaining process reliability.

Looking for an Alternative Membrane for a UTP-6443-Based System?

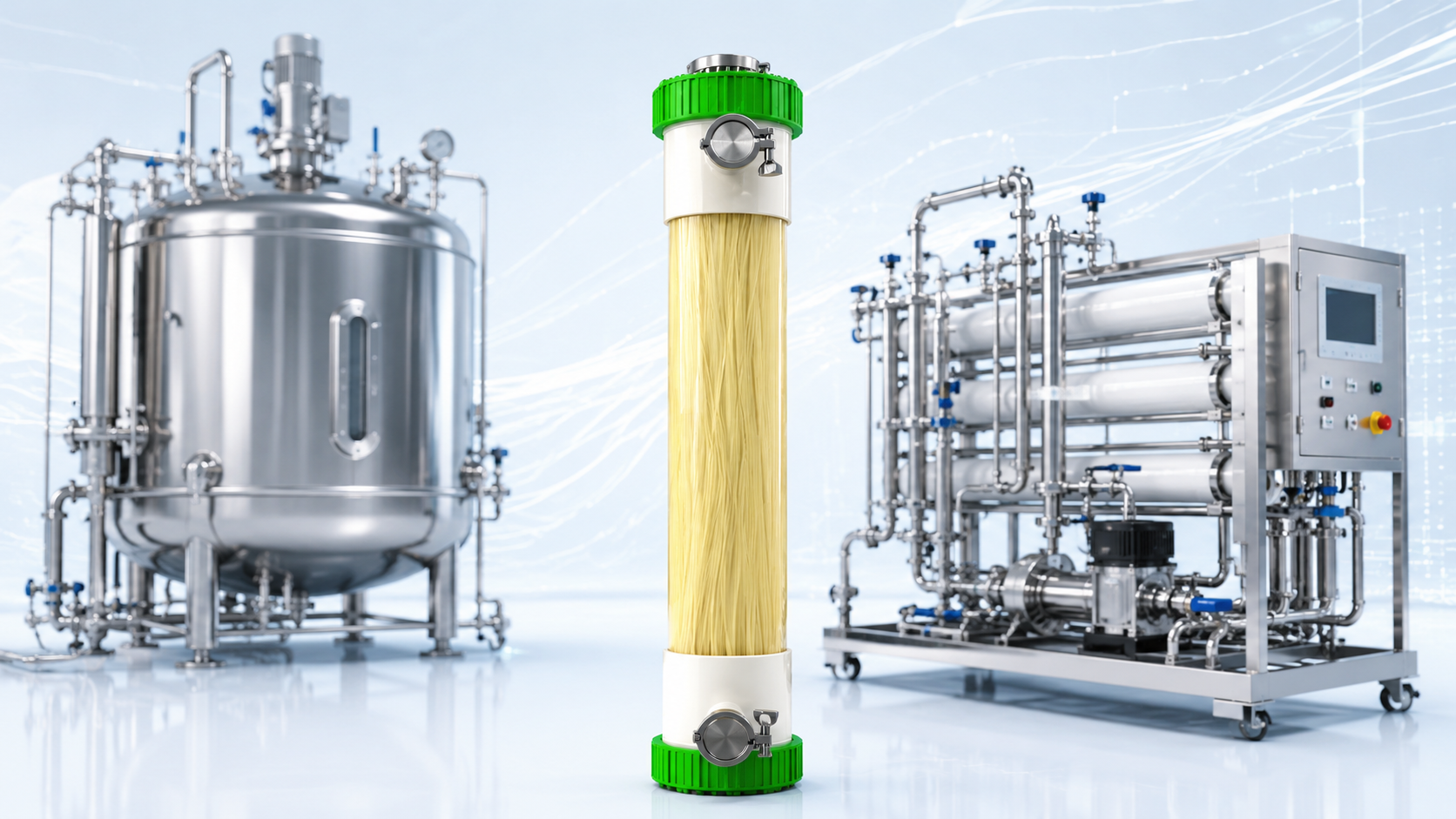

We provide PVDF hollow fiber microfiltration modules for industrial fermentation, food ingredient and bioprocess filtration applications.

For an existing UTP-6443-based system, send us the following information:

· Existing membrane model

· Number of installed modules

· Fermentation product

· Feed solids concentration

· Feed viscosity, if available

· Operating temperature

· Current TMP

· Current circulation flow

· Current permeate flow

· CIP procedure

· Required batch processing time

Our technical team can review the operating conditions and determine whether an alternative module is suitable for further evaluation.

Request Technical Datasheet

Request Compatibility Review

Request Pilot Sample

Microza® and UTP-6443 are trademarks/product designations of their respective owner. References are used only to identify compatibility and replacement evaluation requirements. We are not affiliated with or endorsed by the original manufacturer unless expressly stated.
