Author: Site Editor Publish Time: 2026-08-14 Origin: Site
Choosing the right capacity for a marine RO desalination unit is not simply a matter of selecting 5, 10, or 15 m³/day from a catalogue.
For shipowners, ship management companies, shipyards, and marine equipment suppliers, the correct capacity depends on how much fresh water the vessel actually requires, how many hours per day the watermaker will operate, the seawater conditions, available installation space, electrical supply, and the required level of redundancy.
An undersized marine watermaker may need to operate continuously and still struggle to meet demand. An oversized unit, on the other hand, may increase equipment cost, footprint, and power requirements unnecessarily.
So how should you choose between a 5 m³/day, 10 m³/day, or 15 m³/day marine RO system?
The first question should not be:
“What capacity RO unit do I need?”
Instead, ask:
“How much fresh water does the vessel need every 24 hours?”
Freshwater demand may include:
Crew accommodation and sanitary use
Kitchen and galley water
Drinking water
Showers and laundry
Equipment washing
Technical or utility water
Other vessel-specific consumption
The actual requirement varies significantly depending on vessel type, crew size, operating pattern, onboard storage capacity, and water-saving practices.
For this reason, the best starting point is the vessel's actual daily freshwater consumption or the owner's design requirement.
A common mistake when selecting a marine RO watermaker is to compare daily consumption directly with the rated production capacity.
For example, a vessel requiring 8 m³ of fresh water per day does not automatically mean that an 8 m³/day RO unit is sufficient.
The reason is operating time.
A unit rated at 10 m³/day normally expresses the amount of permeate it can produce over a 24-hour period under its specified design conditions. However, many vessel operators do not want the RO system running continuously.
If the watermaker is expected to operate only 12 to 16 hours per day, its required nominal capacity needs to be higher than the actual daily water consumption.
A practical sizing relationship is:
Required nominal capacity = Daily freshwater demand × 24 ÷ Expected operating hours per day
For example, if the vessel requires 8 m³/day and the RO unit is planned to run for 16 hours:
8 × 24 ÷ 16 = 12 m³/day
In this case, a 15 m³/day model may be more appropriate than a 10 m³/day unit, especially if additional reserve capacity is required.
A 5 m³/day marine RO desalination unit is usually considered when freshwater demand is relatively low and installation space is limited.
Typical projects may include smaller workboats, fishing vessels, tugboats, patrol vessels, crew boats, or other vessels with a relatively small onboard water requirement.
The main advantages are a compact footprint, lower installed power, easier installation, and lower initial investment.
However, buyers should check whether the 5 m³/day capacity still provides enough production when operating hours are restricted.
If the system has to run almost continuously just to satisfy normal consumption, moving to the next capacity may provide greater operating flexibility.
A 10 m³/day marine watermaker is a common middle-range solution for vessels requiring more freshwater but still needing a compact system.
For many commercial marine projects, this capacity provides a useful balance between production capacity, equipment footprint, and power consumption.

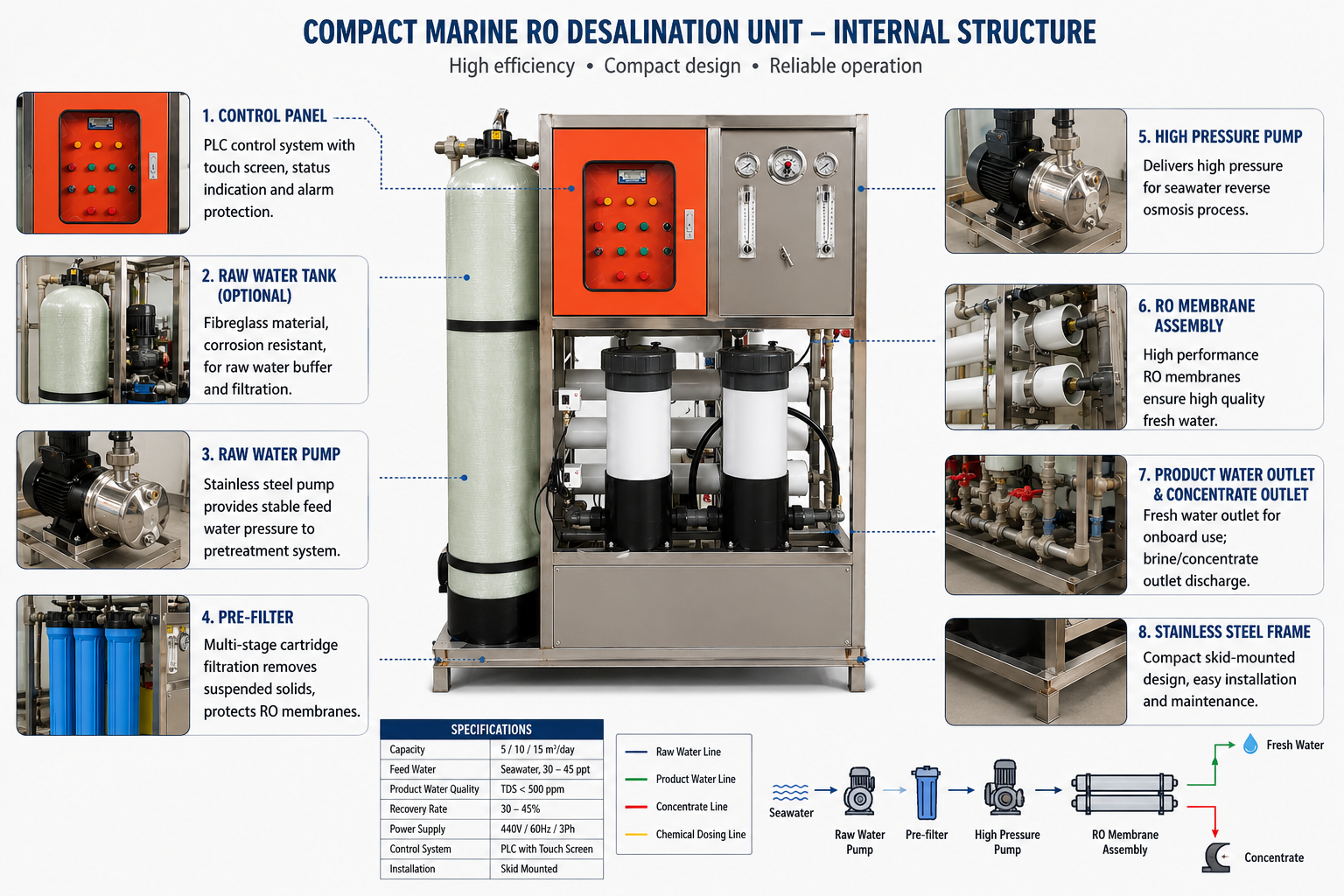

Marine RO systems are commonly supplied as compact skid-mounted units that combine pretreatment, a high-pressure pump, RO membranes, instrumentation, controls, and flushing functions. Commercial marine RO systems also commonly use pre-filtration to protect the membranes before seawater enters the high-pressure RO section.
A 10 m³/day unit may be suitable when the vessel's real demand is comfortably below the rated output and sufficient operating time is available.
A 15 m³/day marine RO desalination system becomes attractive when the vessel has higher freshwater demand or when the operator wants additional production reserve.
It can also be a better choice when the customer wants fewer operating hours per day.
For ship management companies, this operating margin can be important. The question is not only whether the system can produce enough water under normal conditions, but whether it can continue meeting demand when operating conditions change or maintenance reduces available production time.
A larger unit may also replenish the freshwater storage tank more quickly after periods of high consumption.
Marine RO capacity should always be evaluated together with feedwater conditions.
Open-sea feedwater can vary in salinity, and some marine projects specify a design range such as 30–45 ppt.
Higher salinity requires greater osmotic pressure and affects the operating conditions of the RO system. Feedwater temperature also influences membrane performance. RO membrane manufacturers therefore use feed salinity, temperature, pressure, recovery, membrane selection, and other design parameters when modelling system performance.
When requesting a quotation, it is better to provide the expected seawater salinity and temperature range instead of asking only for a nominal production capacity.
Electrical compatibility is another critical item in a marine RO RFQ.
Common project specifications may state requirements such as:
440 V / 60 Hz / 3 Phase
The supplier should confirm that the feed pump, high-pressure pump, control cabinet, and other electrical components are suitable for the vessel's available power supply.
Do not assume that a standard industrial RO system can be installed onboard without modification.
For retrofit projects, physical dimensions can sometimes be as important as production capacity.
Before confirming the equipment, check:
Available footprint, access for membrane replacement, maintenance clearance, pipe connection positions, lifting access, skid weight, and installation route into the engine room or equipment space.
Material selection is also important because seawater service creates a demanding corrosion environment. Marine RO systems may use corrosion-resistant materials in high-pressure seawater sections, depending on system design and customer specifications. Commercial seawater RO systems, for example, may use high-alloy stainless steel or duplex-type materials for high-pressure wetted components.
To receive an accurate quotation for a 5, 10, or 15 m³/day seawater RO unit, buyers should provide more than the required production capacity.
A good RFQ should include:
Required freshwater capacity, seawater salinity, minimum and maximum seawater temperature, electrical supply, required product-water quality, available installation space, inlet and outlet connection requirements, required classification certificate, vessel type, and delivery location.
If RINA, CCS, DNV, ABS, BV, LR, or another classification requirement applies, it should be stated at the RFQ stage because certification requirements can affect equipment configuration, documentation, inspection, cost, and delivery schedule.
There is no universal answer based only on vessel size.
A 5 m³/day unit may be ideal for one vessel but too small for another vessel of similar dimensions because crew numbers and operating profiles are different.
The best approach is to calculate the vessel's real freshwater requirement first, determine the preferred daily operating hours, and then select a marine RO system with reasonable operating reserve.
Before ordering, also confirm feedwater conditions, electrical supply, installation space, materials, water-quality requirements, certification, spare parts, and after-sales support.
A properly sized compact marine RO desalination unit should do more than produce the required amount of water. It should fit the vessel, match its electrical and piping systems, remain practical to maintain, and provide reliable freshwater production throughout the vessel's operation.
If you are preparing an RFQ for a 5 m³/day, 10 m³/day, or 15 m³/day marine RO watermaker, providing complete operating data at the beginning will make equipment selection faster and significantly reduce technical clarification during the purchasing process.
Planning a 5, 10 or 15 MT/D marine seawater desalination system?
Please provide the following information so we can select the correct RO system and prepare an accurate quotation.
RFQ Information | Customer Requirement |
|---|---|
Required Capacity | ☐ 5 (m3)MT/D ☐ 10(m3) MT/D ☐ (m3)15 MT/D |
Feed Water | Seawater |
Seawater Salinity | ______ ppt (Typical design range: 30–45 ppt) |
Seawater Temperature | Min. ______ °C / Max. ______ °C |
Power Supply | ______ V / ______ Hz / ☐ 1Ph ☐ 3Ph |
Typical Marine Power Option | ☐ 440V / 60Hz / 3Ph |
Required Product Water Quality | ______ ppm TDS |
Operating Hours per Day | ______ hours/day |
Classification Certificate | ☐ RINA ☐ CCS ☐ DNV ☐ ABS ☐ BV ☐ LR ☐ Other: ______ |
Vessel Type | ☐ Cargo Vessel ☐ Tugboat ☐ Workboat ☐ Fishing Vessel ☐ Offshore Vessel ☐ Other: ______ |
New Build / Retrofit | ☐ New Build ☐ Retrofit |
Available Installation Space | L ______ × W ______ × H ______ mm |
Required Installation Type | ☐ Skid Mounted ☐ Modular ☐ Other: ______ |
Delivery Port / Destination | ______________________________ |
Required Delivery Date | ______________________________ |
Company Name | ______________________________ |
Contact Person | ______________________________ |
Email / WhatsApp | ______________________________ |
