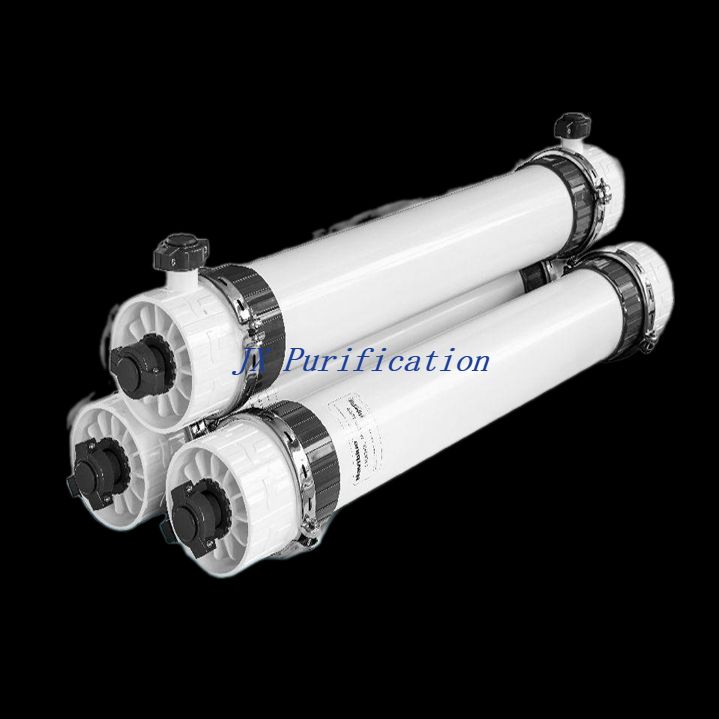

JXUF77m2 （Analog KOCH-V1080）
Outside-in Hollow fiber Membrane Modules UF
Product description
Membrane material: | PVDF |
Membrane housing | PVC |
Trapped molecular weight | 300000Dal |
Sealing | Epoxy |
Permeate Pipe | PVC |
Specifications
Design Flux range | Effective UF membrane |
GPD(lmh) | Ft2 (m2) |
30-6-(50-102) | 830ft2/77m2 |
Operation parameters
Max. Operation Pressure | 45psi(3.1 bar) |
Temperature | <=104℉ （40℃） |
Max. Backwash pressure | 30psi (2.0 bar) |
Max. Air source pressure | 15 psi (1.0 bar) |
Max. TMP. | 30psi (2.0 bar) |
pH Tolerance range | 1.5-13 |
Type | L | L1 | L2 | L3 |
JXUF77 | 2360 | 2000 | 2130 | 2320 |
Principle of external pressure hollow ultrafiltration membrane:
JX external pressure hollow ultrafiltration membrane is the main application of ultrafiltration technology, this technology can also be called the wrong flow filtration (Cross Filtration) it can be separated from the surrounding media containing particles 10 ~ 100A particles, particles within this size range, usually refers to the solutes in the liquid. It is the use of asymmetric microporous structure and semi-permeable membrane media, and then there is a pressure difference between the two sides of the JX external pressure type hollow ultrafiltration membrane is as a driving force, in order to mis-flow filtration. The solvent and small molecules pass through, large molecules and microparticles such as proteins, water-soluble polymers, bacteria, etc. are retained by the membrane, so as to achieve the purpose of separation, grading, purification, concentration of a new membrane separation technology.
JX external pressure type hollow ultrafiltration membrane features:
1、Good hydrophilicity
JX ultra-ultrafiltration membrane has been treated with special hydrophilic treatment, and JX ultra-ultrafiltration membrane filament has * hydrophilic performance, and the hydrolysis contact angle is reduced from 79~90 degrees to 30~35 degrees before modification. It is possible to get high water flux under lower transmembrane pressure, and at the same time improve the pollution resistance of the membrane filament.
2、High filtration precision
JX ultrafiltration membrane has uniform micropores of less than 0.1 micron, which can remove microorganisms, colloids, diatoms and other substances that cause turbidity.
Ultrafiltration membrane
3、Good mechanical strength
The mechanical strength of JX ultrafiltration membrane reflects the ability of the membrane filament to resist filament breakage, which makes the ultrafiltration membrane lose its separation performance, and is an important index for evaluating the performance of ultrafiltration membrane.
4、Long service life and strong anti-fouling ability
JX ultrafiltration membrane has good resistance to chemical corrosion, oxidation and light aging. Therefore, it can be repeatedly cleaned using various methods to remove pollutants and restore flux.
5、Stable product performance
JX ultrafiltration membrane starts from the supply of raw materials, preparation process and product testing. To ensure stable quality of raw materials, consistent and accurate control of the preparation process of JX ultrafiltration membranes and the testing of the product*, to ensure the stability of the product performance.
JX external pressure type hollow ultrafiltration membrane application fields:
1.Drinking water in living area
The traditional tap water process has certain defects, after the transmission network of tap water quality has been unable to meet the standards, the use of ultrafiltration membrane can remove suspended solids, bacteria, etc., to ensure the microbiological safety of drinking water.
2. Preparation of mineral water
Compared with RO reverse osmosis membrane or nanofiltration membrane filtration, ultrafiltration membrane * is that it can remove suspended solids, bacteria and other harmful substances at the same time, the mineral water in the beneficial minerals retained, so in the treatment of mineral water it is the ideal choice.
3.Medical and Pharmaceutical
During infusion, if the intravenous glucose water solution contains heat source, it may cause the patient's body temperature to rise, if the use of ultrafiltration membrane filtration treatment of pharmaceuticals can improve its quality.
4. Food and beverage and sterile liquid preparation
The application of ultrafiltration membrane in the process of manufacturing beverages and wines can remove turbidity and bacteria, and at the same time improve the clarity of the liquid.
How much does JX ultrafiltration membrane cost in China
JX External Pressure Hollow Ultrafiltration Membrane Price Influencing Factors:
1.The price of JX External Pressurized Hollow Ultrafiltration Membrane is mainly composed of cost, tax and profit, so the price of the product depends on the cost of producing this product.
2. In different dealers to get the JX external pressure hollow ultrafiltration membrane price is not the same, if the JX brand agents, all the supplies are issued directly from the manufacturer, cheaper than the standard market price will be cheaper, and the supply is more secure.
3. Purchase JX external pressure hollow ultrafiltration membrane quantity, the price will be different, the more you buy the cheaper the price.
JX External Pressurized Hollow Ultrafiltration Membrane Storage:
Please observe the following rules for storing JX external pressurized hollow ultrafiltration membrane modules:
JX Hollow ultrafiltration membrane modules that are not installed and used for the time being should be stacked on a flat, clean floor in a room far away from cold and heat sources, and the surrounding environment is free of corrosion and pollutants. The storage ambient temperature should be controlled between 5~40℃ range, and the storage ambient temperature should be 20~35℃; JX external pressure type hollow ultrafiltration membrane module should be kept in the original package as far as possible all the time, and the unopened new JX external pressure type hollow ultrafiltration membrane can be preserved up to 1 year under the fulfillment of the above storage conditions.
Guarantee:
1. The JX external pressure type hollow ultrafiltration membrane purchased in our company, we can assure you that it is original, and we will provide the corresponding certificate of origin and factory certificate with all the relevant information. And we can write on the contract that JX external pressure type hollow ultrafiltration membrane is original, fake one, we compensate ten, so that regulations we can do.
2. Free technical guidance and logistics data tracking, safer to buy.
