UF vs Sand Filter: Which One Should You Choose for Water Treatment?
Introduction
When choosing a water treatment system, the comparison of UF vs sand filter is one of the most common decisions for engineers and project owners.
Both systems are widely used in Africa, Southeast Asia, and South America, but they offer very different performance levels. Of course price is different as well.
What Is a Sand Filter?
A sand filter is a traditional filtration system used to remove suspended solids and turbidity.
· Filtration accuracy: 20–50 microns
· Low cost and simple design
· Commonly used as pre-treatment
· �� Widely used before RO systems or irrigation systems.
What Is Ultrafiltration (UF)?
Ultrafiltration (UF) is a membrane-based water treatment technology with much higher precision.
· Filtration accuracy: 0.01–0.1 microns
· Removes bacteria and viruses
· Produces stable, high-quality water
· �� Often used as RO pre-treatment or for drinking water systems.

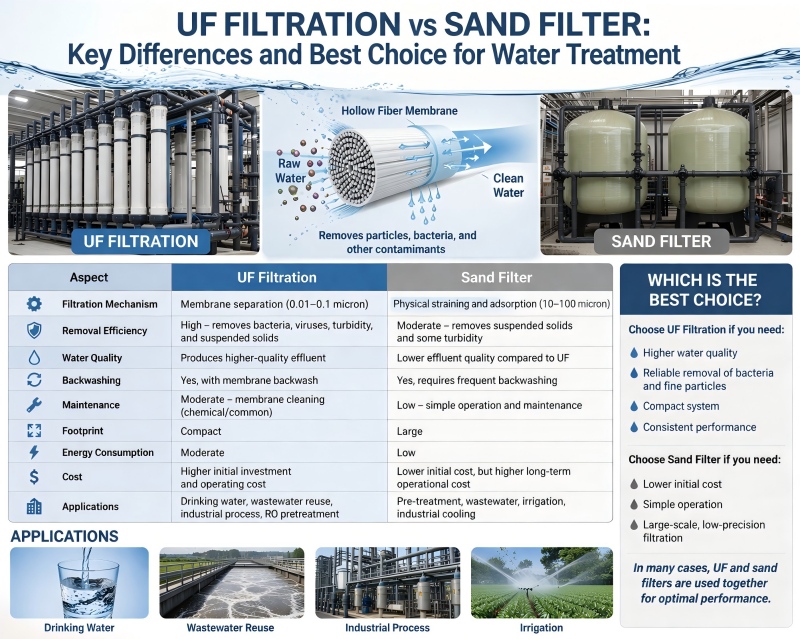

UF vs Sand Filter: Key Differences
Parameter | Sand Filter | UF System |
Accuracy | 20–50 µm | 0.01–0.1 µm |
Bacteria Removal | No | Yes |
Water Quality | Medium | High |
Footprint | Large | Compact |
Dupont SFP SFD 2880, 2860 | PVDF 77m2, 51m2,0.03um |
Dupont IP51, IP77 | PVDF 77m2, 51m2,0.03um |
Microza 620A | PVDF 50m2,0.08um |
Microza 620AB | PVDF 65m2, 0.08um |
Veolia/Suez ZW1500X | PVDF 55.7m2, 0.03um |
Suez ZW700B-10060 without end-cap
| PES 60m2 |
Suez ZW700B-10060 with end-cap
| PES 60m2 |
Toray HFU 2020N | PVDF 72m2, 90m2 |
Microdyn Uf FV890 | PVDF 52m2, 0.03um |
LG G-Brane P5 LG G-Brane P7 | PVDF,50m2,0.1um PVDF,75m2, 0.1um |
KOCH-V1080 | PVDF 51.5m2 |
Hydracap Max 40 | PVDF 52m2 |
Hydracap Max 60 | PVDF 78m2 |
Hydracap Max 80 | PVDF 105m2 |
Pentair XF40C | PES 40m2 |
Pentair XF55 | PES 55m2 |
Pentair Aquaflex 64 | PES 64m2 |
Inge XL 0.9MB | PES 50m2, 60m2 |
Inge T Rrack | PES 7 bores 50m2, 60m2, 72m2, 80m2 |
Hyflux kristal UF membranes K-600B0820 | K-600B0820 K-600ET0820 K-600ETN0812 K-600ER0820 K-2000T0820 |
· Low budget projects
· Basic filtration only
· Pre-treatment requirement
· Drinking water treatment
· RO system protection
· High-quality water demand
�� In modern projects, UF is increasingly replacing sand filters.
· Sand filter: Lower initial cost
· UF system: Higher upfront cost but better long-term performance
�� UF reduces RO fouling and maintenance costs significantly.
Using UF instead of sand filter as RO pre-treatment offers:
· Better SDI control
· Longer RO membrane life
· Lower maintenance
· �� This is a key trend in industrial water treatment.
· FAQ
· Is UF better than sand filter?
· Yes, for high-quality water treatment.
· Can UF replace sand filter?
· In most cases, yes.
· Conclusion
· In the UF vs sand filter comparison:
· Sand filter = basic filtration
· UF system = advanced solution
· �� UF is the better choice for long-term reliability and performance.
